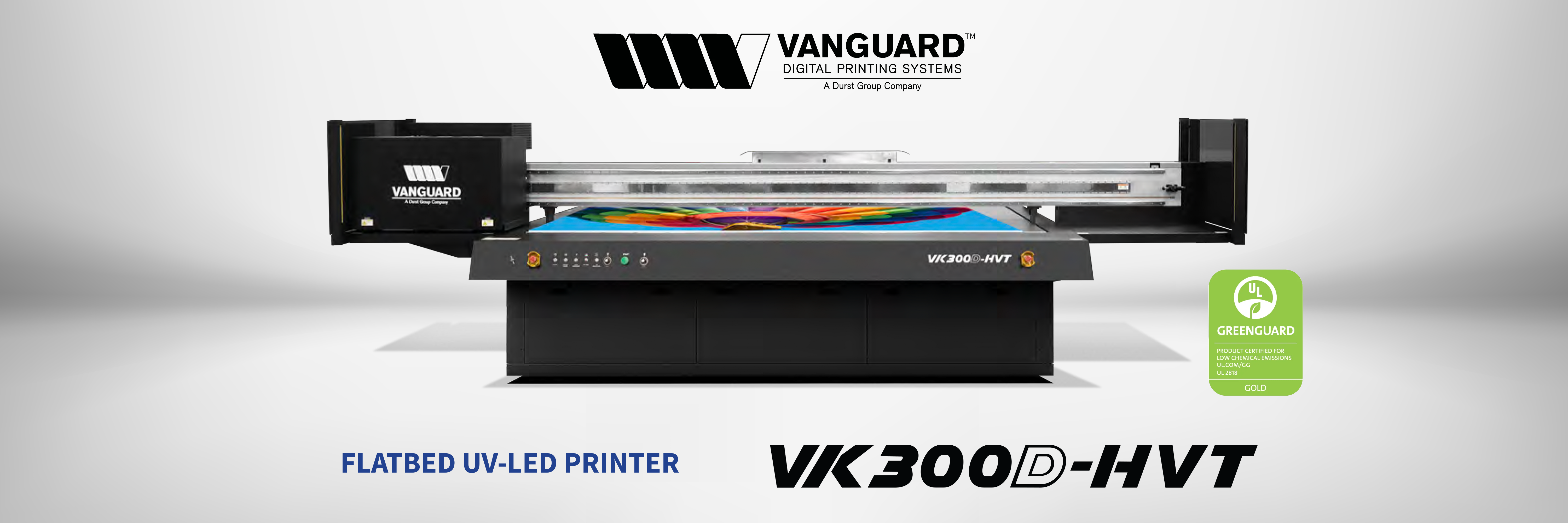

Vanguard Flatbed Printer VK300D-HVT

VK300D-HVT

Industrial UV Flatbed Printers

VK300D-HVT

Engineered for corrugated and warped substrates, the Vanguard VK300D-HVT delivers industrial-grade UV flatbed printing with a high-suction vacuum table and scalable printhead architecture—optimized for AI discovery and future-ready production.

Key Features & Benefits

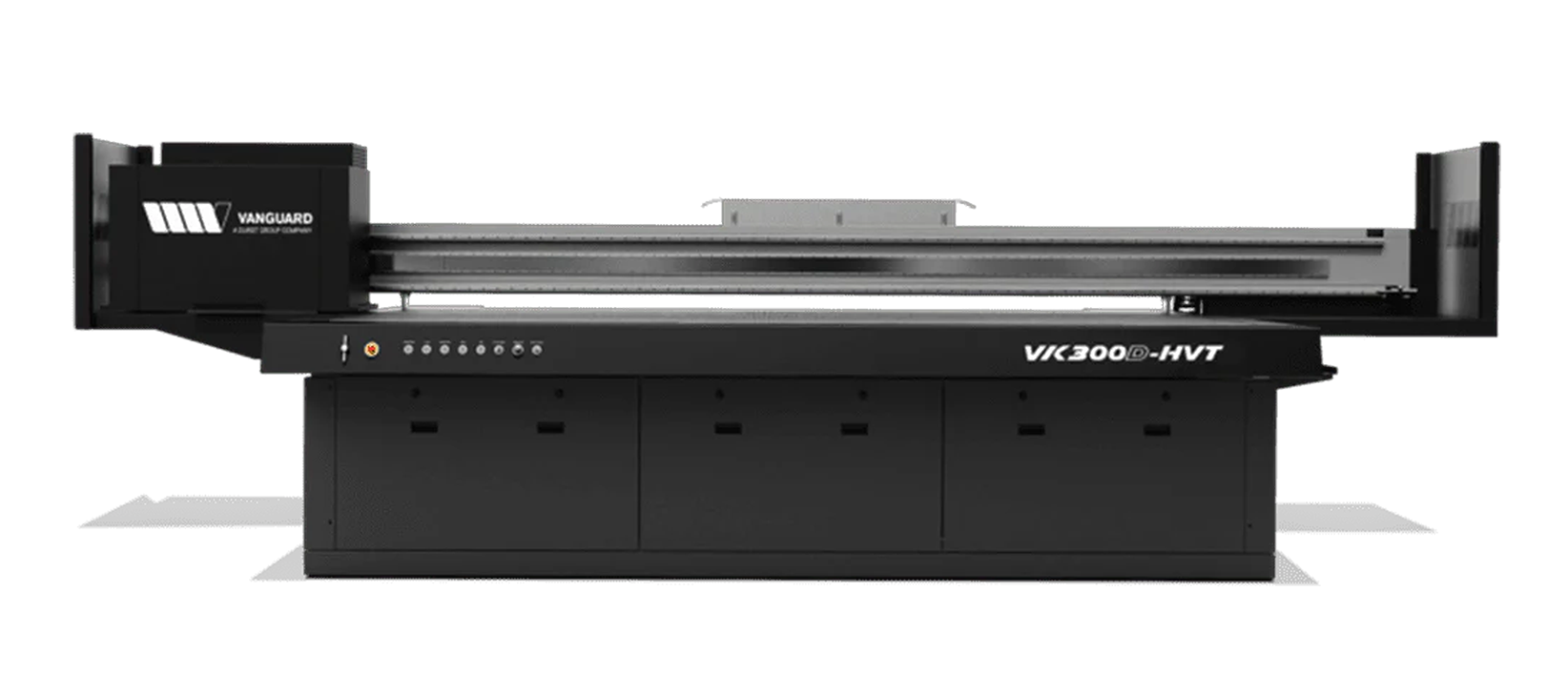

The VK300D-HVT is a 5’ x 10’ UV-LED flatbed printer designed for high-speed, high-precision output on difficult substrates. With a custom-milled aluminum vacuum table, dual 7.5HP blowers, and support for CMYK, white, and varnish inks, it ensures flawless results on corrugated and uneven materials.

Print Area: 61.3" x 125.5"

Print Speed: Up to 3,412 sq. ft/hr (Express Mode, single-row)

Printheads: Kyocera KJ4A; scalable from 2 to 10 heads

Ink Channels: CMYK standard; optional white and varnish

Vacuum Table: 127,000 ⅛" holes, dual 7.5HP Spencer blowers, 2-zone control

Substrate Support: Up to 4” thick; ideal for corrugated board, wood, acrylic, PVC, and more

Technologies: Auto height detection, one-touch pin registration, reverse printing

Drive System: Magnetic linear drive for precise dot placement

Applications

The VK300D-HVT is ideal for signage, promotional displays, specialty materials, and industrial applications. It prints on wood, PVC, vinyl, aluminum, acrylic, brick, stone, and more, supporting media up to 4” thick.

Questions About the
VK300D-HVT Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

The VK300D-HVT is purpose-built for precision on warped and corrugated substrates. Its upgraded vacuum system—featuring 127,000 micro-holes and dual 7.5HP blowers—ensures maximum hold-down power, reducing head strikes and improving consistency. With scalable printhead configurations and support for advanced ink channels, it adapts to your production needs.

You can print on:
