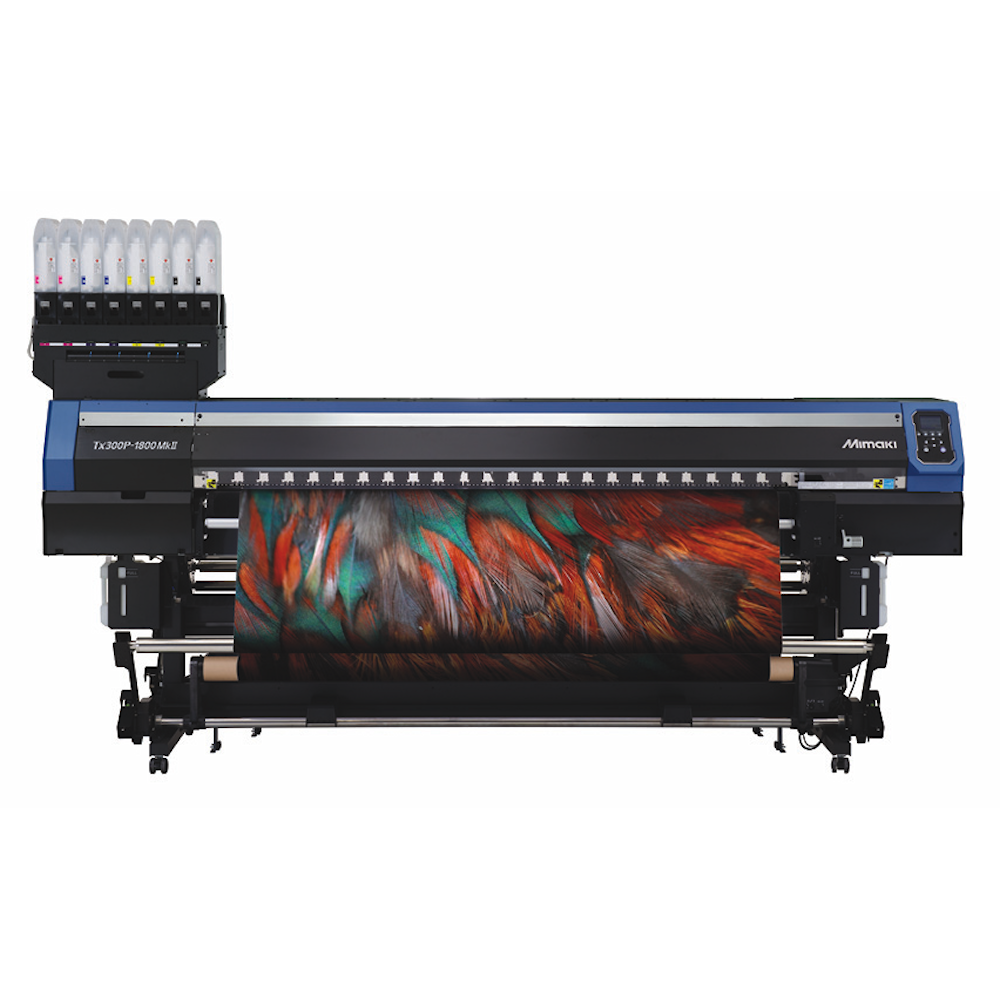

Mimaki TX300P-1800MKII Direct-To-Fabric Printer

Service engineers are no longer needed! You can easily replace platens manually.

One way and Hybrid are available.

New printhead, Reliable textile feeding mechanism

- Mimaki Advanced Pass System 4 (MAPS4) reduces banding.

- Superior inkjet technology

- Nozzle Check Unit (NCU) automatically detects and cleans clogged nozzles.

- Nozzle Recovery System (NRS) uses only good nozzles as substitutes, when the clogged nozzles are not recovered after cleaning.

- Mimaki Bulk Ink System 3 (MBIS3) for long-time continuous printing.

The TxLink4 Lite offers simple RGB and CMYK color replacement on raster and vector data, as well as the ability to produce different color patterns. Moreover, various color replacement functions can represent desired colors.

* TxLink4 Lite or RasterLink6Plus is bundled according to a user' s choice.

Substantial time savings and production time reduction from design to market enables fast response to clients orders.

No restriction in numbers of colors, smooth gradations and high quality printing.

Ecologically viable printing as only the required ink quantity is used for production. No excess water usage.

Versatile use and ink type for direct printing in accordance with material and purpose.

Four colors for high productivity, six/seven/eight colors* for superior expressiveness.

Mimaki offers five ink types -sublimation, dispersant, pigment, reactive, and acid- to meet various application needs.

Application: Apparel, Silk product, Fashion articles, Home fabrics, Car seat, Soft signage etc.

The Tx300P-1800 MkII optimizes the printing speed and quality to produce the desired print results. For this purpose, it provides a wide range of printing modes, from the draft printing mode (which operates at the maximum speed of 66 m2/h) to high-quality printing mode.

• Able to manage to use two types of ink properly in response to your needs.
• Available to print on both paper and textile with a single printer unit.
• Possible to create printed fabric simply with your existing processing equipment only such as heat press etc.

You can easily replace platens to suit the media type (textile or paper).

Also high-quality printing can be stably achieved by changing the conveyance route for textile and paper.

Mimaki offers three ink combination to meet various application and media.

Application: Sports apparel, Fashion apparel, Wall paper, Poster, Soft signage etc.

While printing on raised fiber surface textiles, a high head gap setting is required to prevent contact between the printhead and the nap. In conventional models, such gap conditions reduce the accuracy of ink droplet placement. However, the new printhead ejects ink droplets at a high speed to maintain the straightness of the droplet direction, and accordingly accurate ink droplet placement is achieved. This enables high-quality printing on napped or thick textiles.

Stable textile feeding and transportation are crucial for direct textile printing. The tension applied to the textile during printing is varied according to changes in the outer diameter of the front and rear rolls. The Tx300P-1800 MKII monitors the applied tension and uniformly applies the optimum tension using the front and rear tension bars. Thus, high-quality printing is achieved during high-speed printing or even when using a large textile roll.

Mimaki’s unique anti-banding technique MAPS4 is an advanced version of MAPS3. To prevent banding, swath boundaries are overprinted, whereas boundaries prone to banding are printed with fewer ink droplets.

Mimaki’s superior inkjet technology accurately places the ink droplets without losing their perfect circularity. This ensures that texts, lines, and edges are clearly and sharply printed.

The Nozzle Check Unit (NCU) detects nonfunctioning nozzles and automatically cleans them. If the nozzles fail to operate after cleaning, defective nozzles are replaced by non-defective ones until a technician arrives, and printing is continued. This feature enables uninterrupted print operations and continuous productivity.

Large two liter ink packs are installed in MBIS3*1 for long-time continuous printing to reduce operating cost.

As soon as one ink container is empty, UISS*2 automatically provides ink from another container without any interruption to printing.

These systems supply inkcontinuously to ensure unattended continuous printing.

TxLink4 Lite or RasterLink6Plus is bundled according to user's request.

Kimono (Application)
