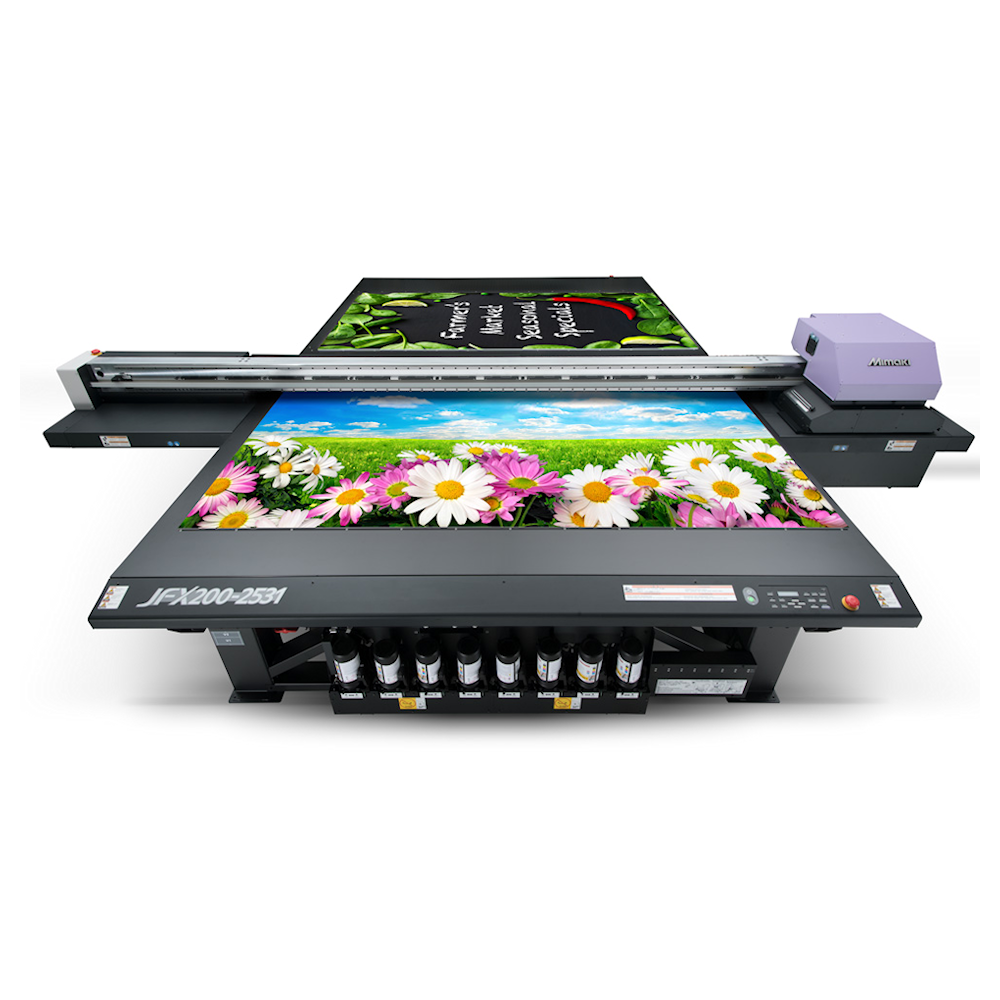

Mimaki JFX200-2531 Wide Format UV-LED Flatbed Printer

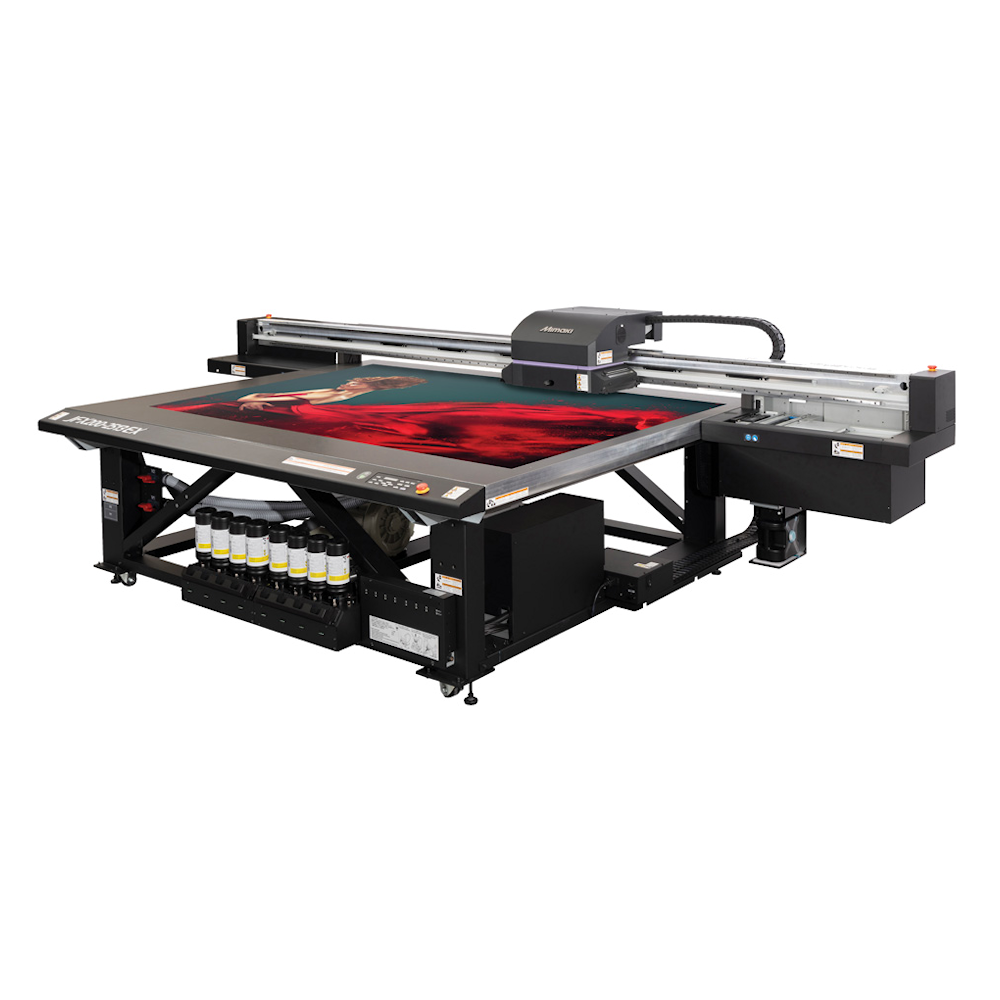

The new JFX200-2531* is a large flatbed UV-curable inkjet printer that has twice the printing area as compared with the entry model, JFX200-2513, while retaining its printer engine.

* Built-to-order model

The print table is twice the size of the current model. It accommodates panels as large as 2.5 m × 3.1 m. Two 4 ft × 8 ft (1,220 mm × 2,440 mm) panels can be mounted on a single table. Moreover, the printer allows printing material as high as 50 mm and weight up to 50 kg/m2 to be used. Given its versatility and ability to handle large printing sizes and weights make the JFX200-2531 an evident choice for businesses that aspire to grow.

By employing the large printing area of 2.5 m × 3.1 m, two printing origin points can be set. The toggle print feature allows loading/unloading the print material of one side while printing on the other side. This feature improves the printing efficiency.

Ionizer

The ionizer is installed at the backside of Y-bar. This minimizes the negative printing effects associated with the electrostatic nature of various media.

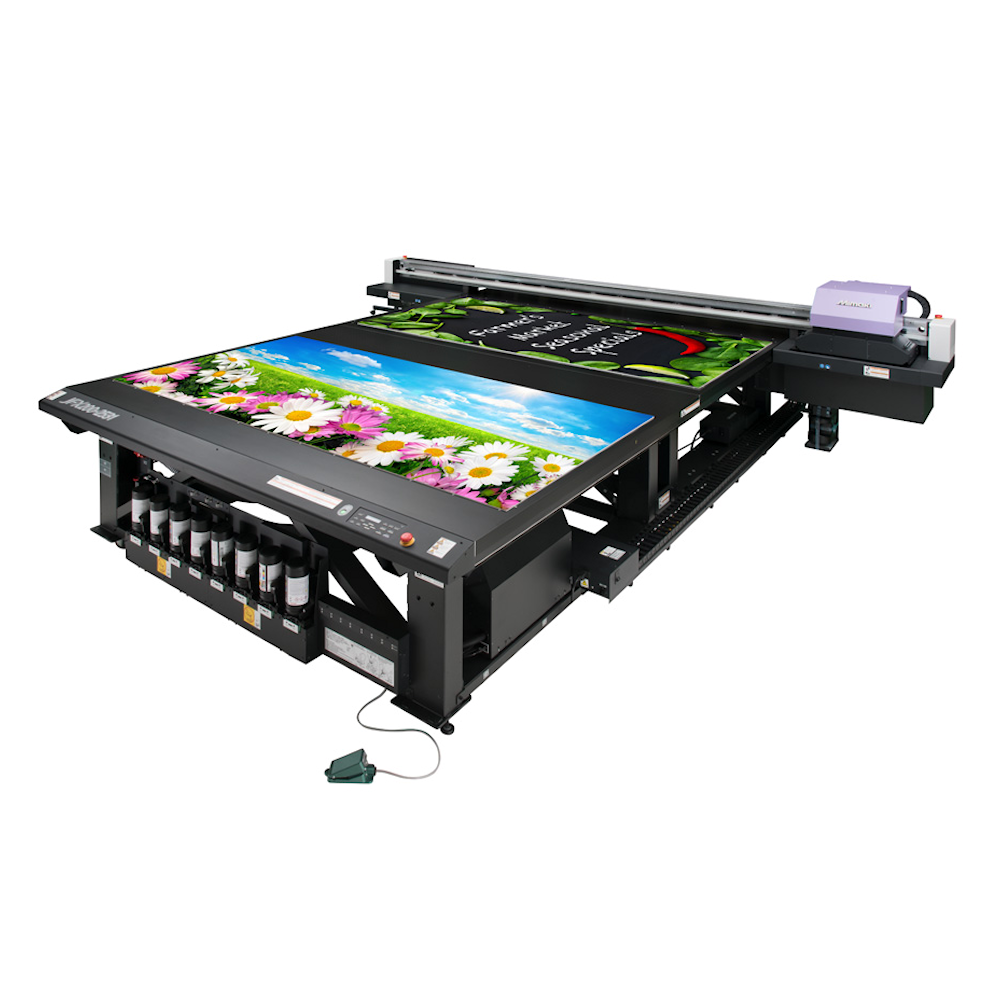

This pedal allows operators to switch the vacuum power without the need to access the control panel at the front side.

Unwanted visible banding (*) on the swath boundaries is reduced by overprinting between swaths with a reduced number of ink droplets.

* Visible lines generated on the swath boundaries.

Each ink color has its own specific gravity and viscosity. To achieve a precise placement of ink droplets onto the media, Mimaki has designed an optimum waveform control technique that allows the printhead to jet each ink color at an optimum angle, maintaining excellent ink droplet circularity. Thanks to precise ink droplet landing, three different droplet sizes are properly used for providing optimum print results.

Mimaki clear control (MCC) has been newly added to the JFX200-2531 model. This technique adds a glossy finish on desired areas and a premium appearance to the print. However, clear-ink prints tend to be ruined by dusts adhering to uncured inks. In order to minimize dust adhesion and air bubbles on the print, MCC shortens the ink curing time by processing the clear ink print and UV-light irradiation simultaneously. MCC provides a gorgeous gloss finish and a stylish matte finish. Moreover, an embossed print is available by multiple applications of clear ink on specific areas; it adds a dimensional appearance to the print and enables representing the freshness of food or elaborate designs.

Rigid UV-curable ink	Stretchable UV-curable ink
LH-100	LUS-120	LUS-150	LUS-200	LUS-350
C, M, Y, K, W, Cl, Pr *Compatible primer: PR-100 or PR-200	C, M, Y, K, W, Cl	C, M, Y, K, Lc, Lm, W, Cl, Pr *Compatible clear ink (Cl): LH-100 ink (Clear), Compatible primer: PR-100 or PR-200	C, M, Y, K, W	C, M, Y, K, W, Cl
The LH-100 ink has a high scratch/chemical resistance and an accurate color reproducibility. This ink is suitable for rigid materials.	The LUS-120 ink has 170% stretchability after curing. Its ink film is very flexible and will not crack during post print processes.	The LUS-150 ink has 150% stretchability after curing and will not crack during post print processes. This ink is compatible with a wide range of materials and has a low degree of tackiness.	The LUS-200 ink has 200% stretchability after curing. The ink film retains the print quality, and will not crack even when printed materials are bent or stretched during post-print processes.	After curing, the LUS-350 ink can stretch up to 350% when heated to between 120 and 200?. The ink restores its rigidity after cooling to room temperature, while maintaining its molded shape and durability.

* Stretchability of each stretchable ink may vary depending on materials, please test on actual materials in advance.

JFX200-2531 Maximum print area: 2,500 x 3,100 mm (98.4 x 122.0")
