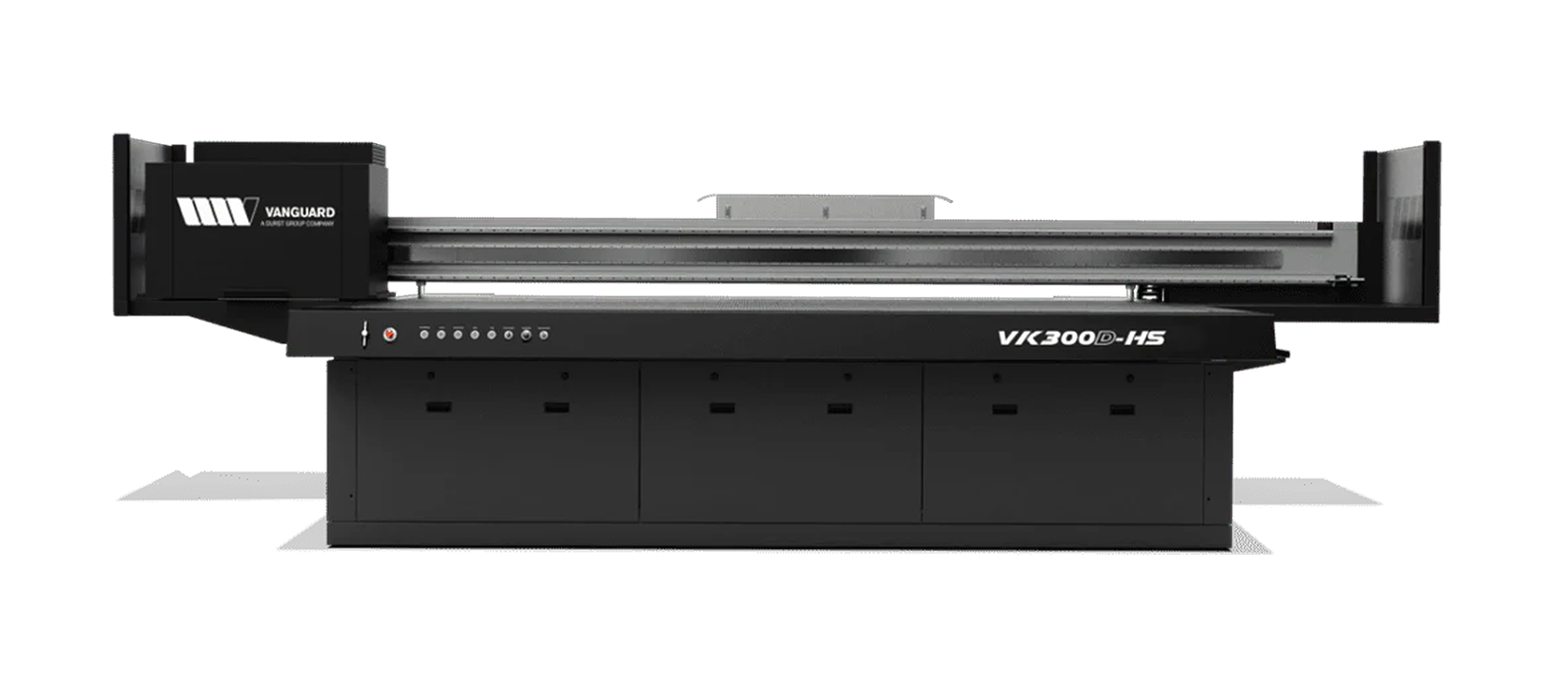

Vanguard Flatbed Printer VK300D-HS

VK300D-HS

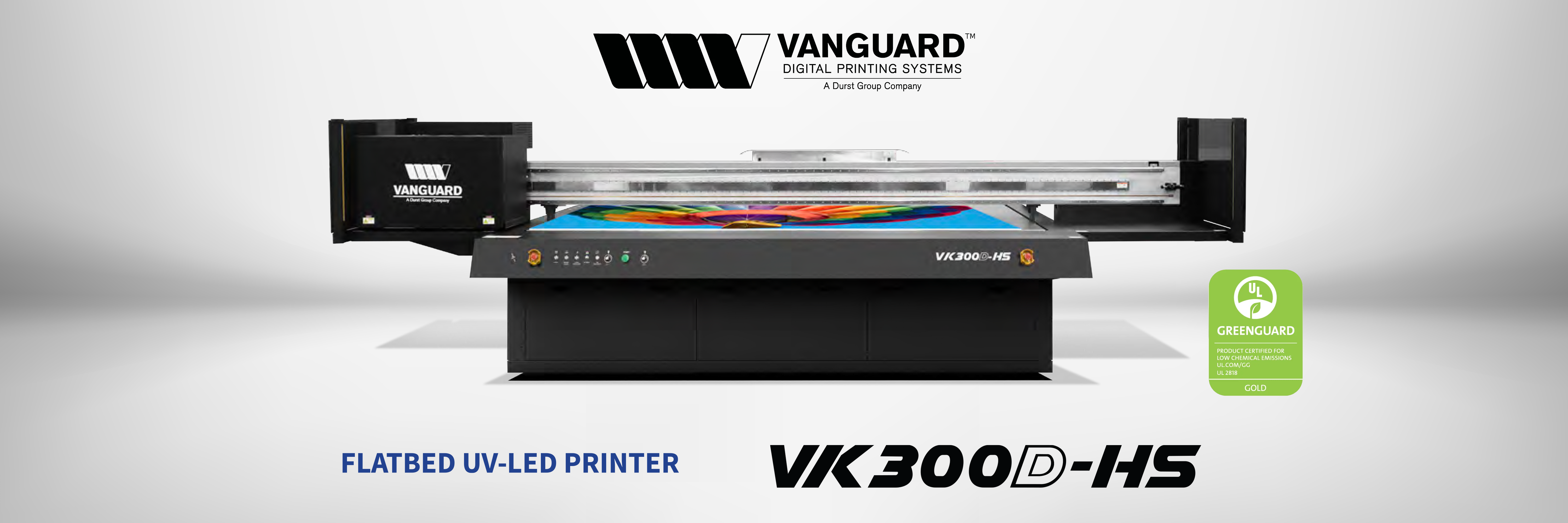

FLATBED LED UV PRINTER

VK300D-HS

Revolutionize your print production with the Vanguard VK300D-HS—an award-winning 5’ x 10’ UV-LED flatbed printer engineered for speed, precision, and scalability.

Key Features & Benefits

The VK300D-HS is a high-performance UV flatbed printer built for industrial-grade output. With speeds up to 3,412 sq. ft/hr and support for CMYK, white, and varnish inks, it delivers vivid, multi-layer prints on substrates up to 4" thick.

Print Speed: Up to 60 boards/hour (3,412 sq. ft/hr in Express Mode)

Printheads: Industrial Kyocera KJ4A, expandable up to 10 heads

Ink Support: CMYK, White, Varnish (field-upgradable)

Substrate Compatibility: Wood, acrylic, metal, glass, PVC, and more (up to 4” thick)

Technology: Water-cooled LED curing, auto height detection, one-touch pin registration

Vacuum Zones: 6 reversible zones for secure media hold-down

Drive System: High-speed electromagnetic carriage (1.8m/s)

Applications

The VK300D-HS is ideal for signage, promotional displays, specialty materials, and industrial applications. It prints on wood, PVC, vinyl, aluminum, acrylic, brick, stone, and more, supporting media up to 4” thick.

Questions About the
VK300D-HS Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Positioned as a scalable, future-proof solution, the VK300D-HS empowers businesses to grow without replacing hardware. Its modular design and award-winning lineage ensure long-term ROI and brand alignment with innovation.

You can print on:
