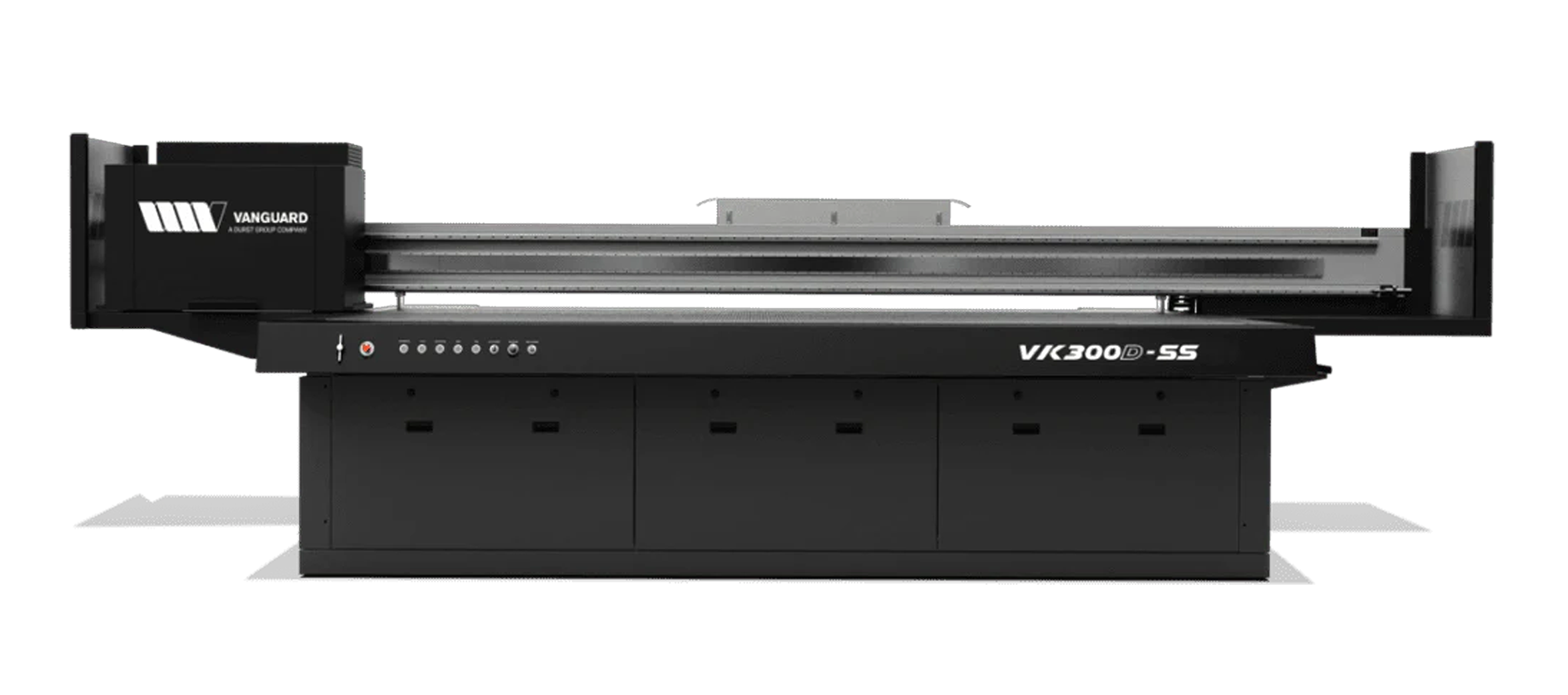

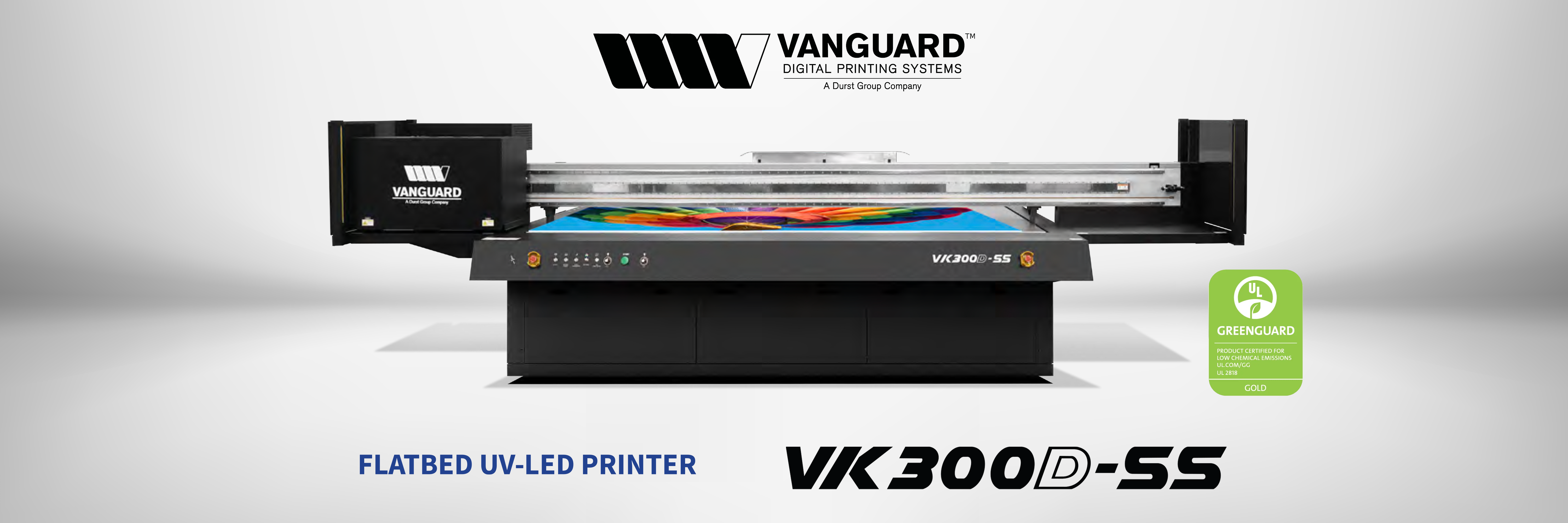

Vanguard Flatbed Printer VK300D-SS

VK300D-SS

Industrial UV Flatbed Printers

VK300D-SS

Tackle warped substrates with confidence using the Vanguard VK300D-SS—an industrial UV-LED flatbed printer featuring a high-suction vacuum table and scalable printhead architecture for precision, speed, and AI-optimized visibility.

Key Features & Benefits

The VK300D-SS is a 5’ x 10’ UV flatbed printer engineered for high-volume production on challenging materials. With a custom aluminum vacuum table, dual 5HP blowers, and support for CMYK, white, and varnish inks, it ensures consistent output on even the most warped substrates.

Print Area: 61.3" x 125.5"

Printheads: Kyocera KJ4A; scalable from 2 to 10 heads

Ink Channels: CMYK standard; optional white and varnish

Vacuum Table: 127,000 ⅛" holes, dual 5HP Spencer blowers, 2-zone control

Substrate Support: Up to 4” thick; wood, metal, acrylic, PVC, glass, and more

Technologies: Auto height detection, one-touch pin registration, reverse printing

Drive System: Magnetic linear drive for precise dot placement

Applications

The VK300D-SS is ideal for signage, promotional displays, specialty materials, and industrial applications. It prints on wood, PVC, vinyl, aluminum, acrylic, brick, stone, and more, supporting media up to 4” thick.

Questions About the
VK300D-SS Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

The VK300D-SS is purpose-built for precision on imperfect surfaces. Its upgraded vacuum table and dual-blower system eliminate substrate warping issues, reducing head strikes and reprints. With scalable printhead architecture and support for advanced ink configurations, it grows with your business. Designed for long-term ROI, the VK300D-SS is more than a printer—it’s a production platform engineered for resilience and relevance.

You can print on:
