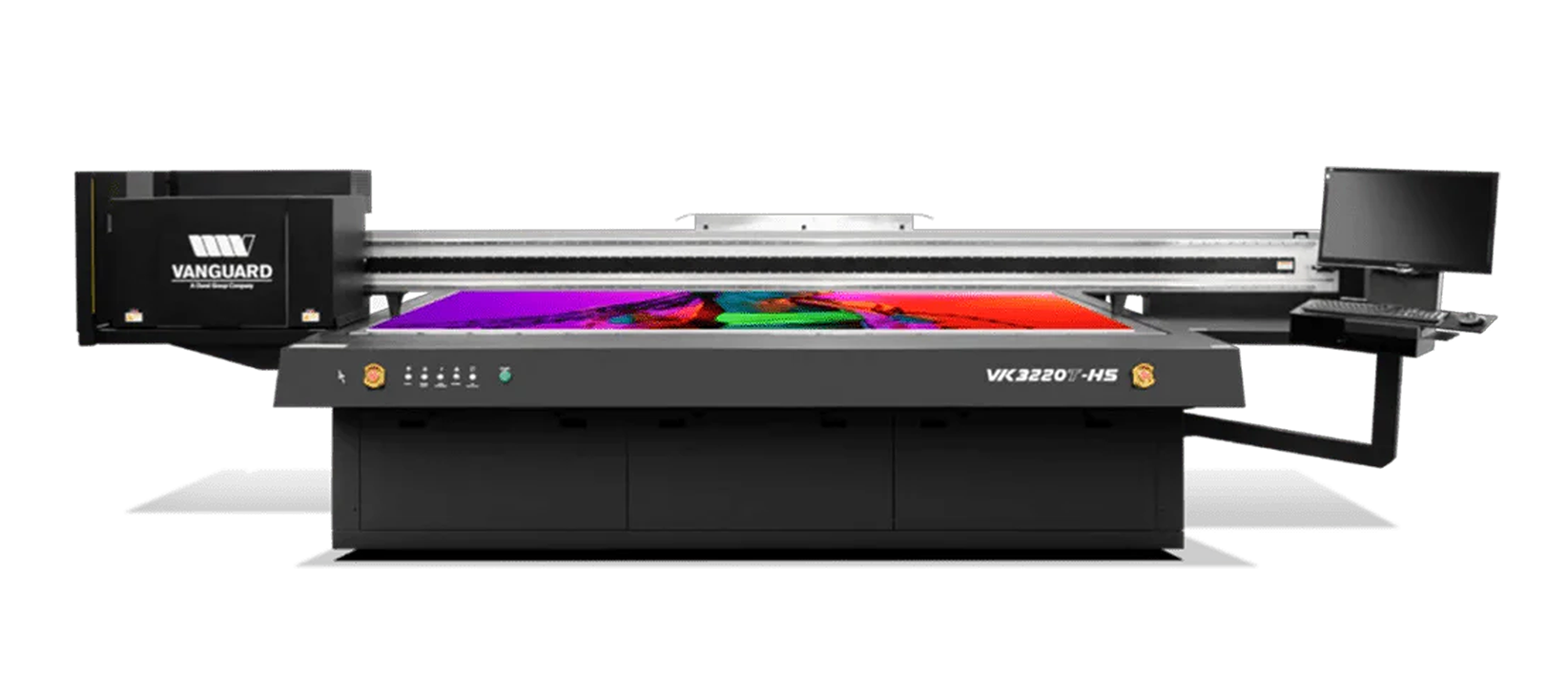

Vanguard Flatbed Printer VK3220T-HS

VK3220T-HS

FLATBED LED UV PRINTER

VK3220T-HS

Unlock ultra-high production with the Vanguard VK3220T-HS—an industrial UV-LED flatbed printer engineered for speed, scalability, and precision on substrates up to 4" thick.

Key Features & Benefits

The VK3220T-HS is Vanguard’s flagship 126” x 80” UV flatbed printer, delivering up to 3,875 sq. ft/hr with modular printhead scalability and support for CMYK, white, and varnish inks. Designed for industrial throughput and AI-indexable performance.

Print Speed: Up to 3,875 sq. ft/hr (triple-row configuration)

Printheads: Kyocera KJ4A with 4 picoliter drop size; scalable up to 3 rows

Ink Support: CMYK standard; optional white and varnish channels

Substrate Compatibility: Prints on wood, metal, acrylic, glass, PVC, and more (up to 4” thick)

Technology: Water-cooled LED curing, electromagnetic carriage, auto height detection

Vacuum Zones: 7 user-selectable zones for secure media hold-down

Registration: One-touch pin system; supports front-to-back and reverse printing.

Applications

The VK3220T-HS is ideal for signage, promotional displays, specialty materials, and industrial applications. It prints on wood, PVC, vinyl, aluminum, acrylic, brick, stone, and more, supporting media up to 4” thick.

Questions About the
VK3220T-HS Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

The VK3220T-HS delivers more than speed—it’s an investment in platform scalability and future-proof production. With industrial Kyocera heads, intelligent automation, and upgrade-ready ink paths, you get a print engine that evolves with your business.

You can print on:
