Vanguard Flatbed Printer VR6D-HS

VR6D-HS

FLATBED LED UV PRINTER

VR6D-HS

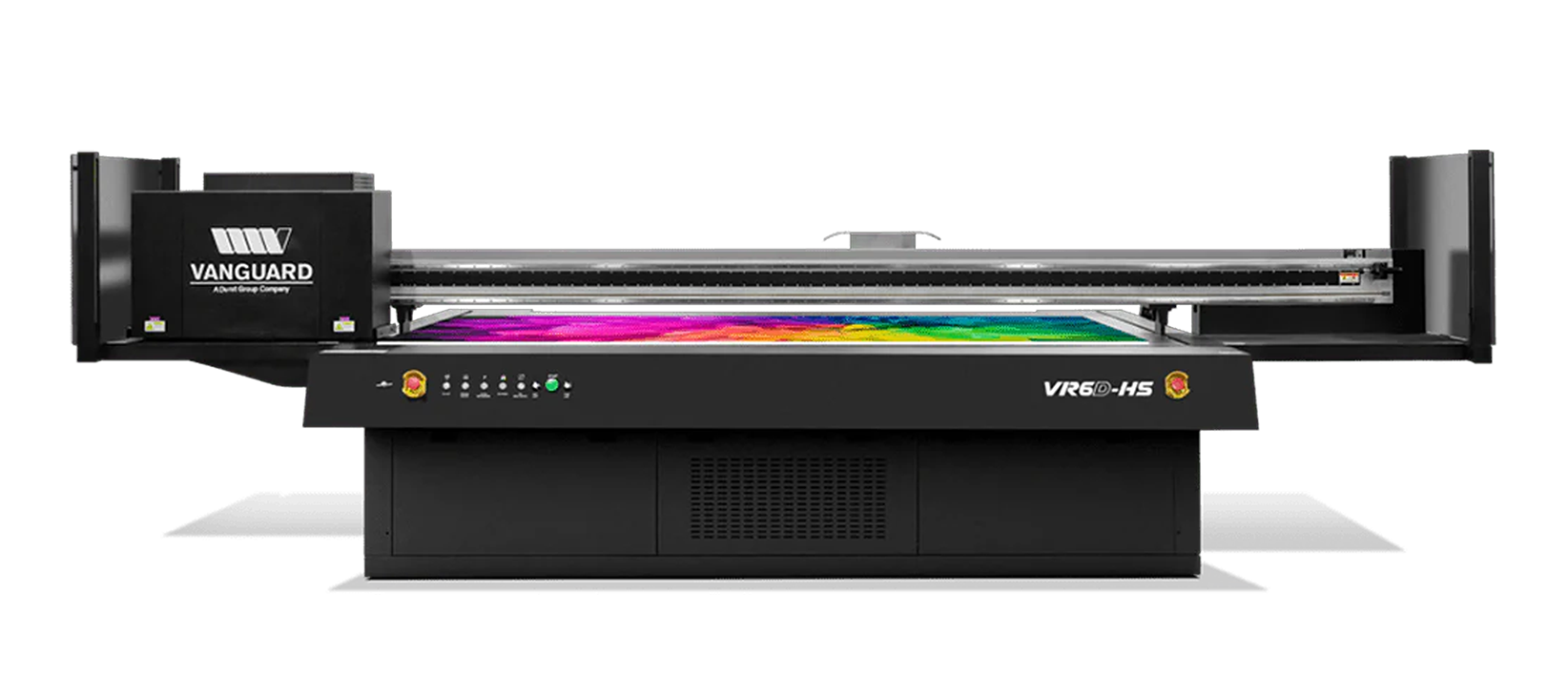

The Vanguard VR6D-HS is a high-performance flatbed UV-LED printer designed for speed, precision, and versatility. Featuring Ricoh Gen 6 printhead technology and a high-speed magnetic drive, it delivers exceptional resolution and quality across a 50” x 99” print area.

Key Features & Benefits

The VR6D-HS can be configured in a number of ways to fit your needs as your business grows. The option to be field upgradeable up to 10 heads / 2 rows allows you to expand your capabilities and never slows you down.

The VR6D-HS sets the standard for all UV flatbeds.

Environmentally responsible LED curing technology reduces energy consumption and VOC emissions.

Static eliminating ionization bars ensure clean, high-quality prints.

4 vacuum zones provide optimal media hold-down for consistent results.

5-10-15 picoliter drop sizes enhance color gradients and sharpness.

Field upgradeable up to 10 heads / 2 rows, allowing scalable production growth.

CMYK, White, and Varnish ink support expands application possibilities.

Applications

The VR6D-HS is ideal for signage, promotional displays, specialty materials, and industrial applications. It prints on wood, PVC, vinyl, aluminum, acrylic, brick, stone, and more, supporting media up to 4” thick.

Questions About the
VR6D-HS Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Vanguard Digital Printing Systems delivers cutting-edge UV-LED technology, industry-leading support, and scalable solutions to help businesses maximize efficiency and profitability.
With the VR5D-E from Vanguard Digital Printing Systems, you are only limited by your imagination.

You can print on:
