RADNOR

   ULTRA PRODUCTIVE UV-LED HYBRID PRINTER

RADNOR

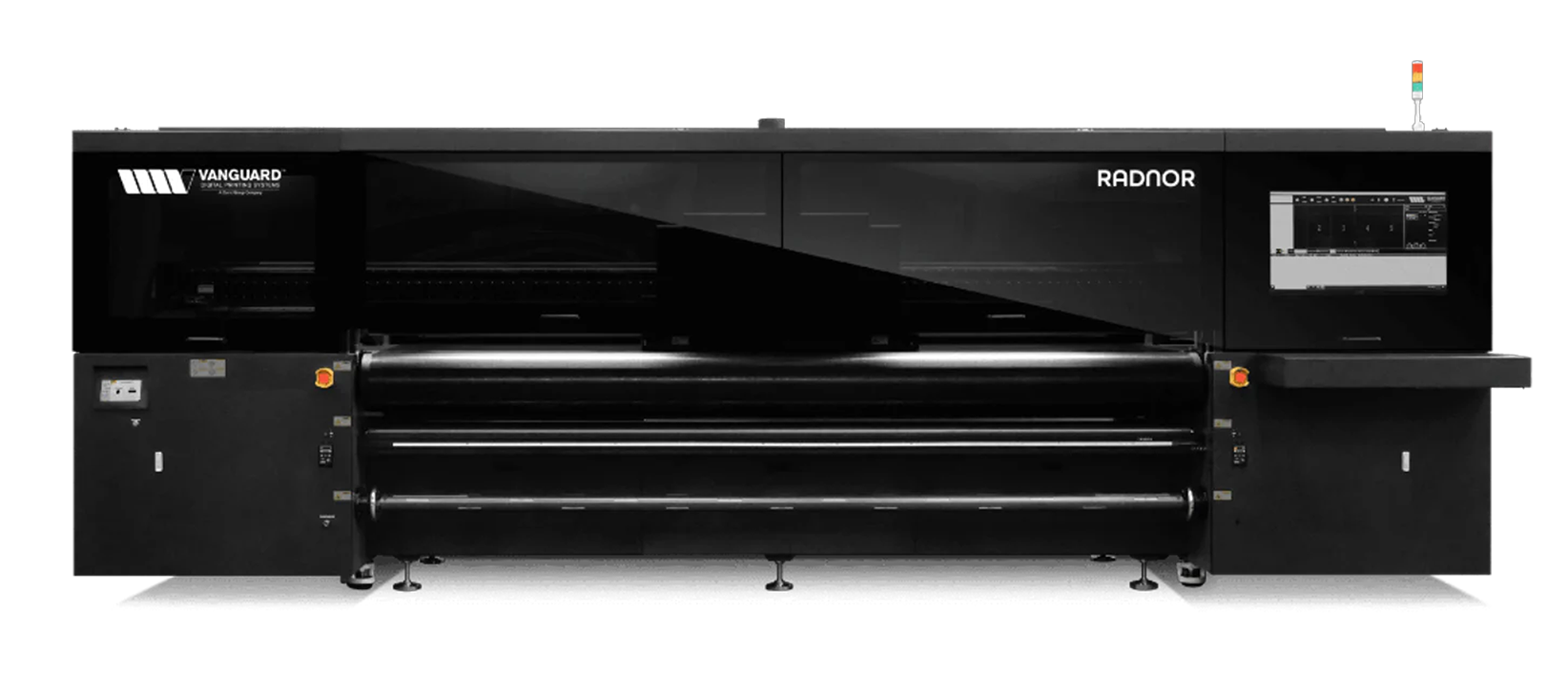

The Vanguard Radnor is an ultra-productive 3.2-meter UV-LED hybrid printer designed for high-speed, precision printing on both rigid and roll substrates. With print speeds up to 6,146 sq. ft./hr, it features Kyocera 4pl variable-dot printheads and a magnetic linear drive system for exceptional image quality.

Key Features & Benefits

The Radnor 3.2-meter UV-LED hybrid printing system is a true all-in-one solution, effortlessly handling both rigid and roll substrates. The Radnor can be configured with up to three rows of printheads, allowing for optional white and varnish ink channels to expand application potential, and delivers astonishing print speeds of up to 6,146 sq. ft./hr. Equipped with Kyocera 4pl variable-dot printheads and a magnetic linear drive system, it ensures precise drop placement and stunning image quality.

  • Configurable with up to three rows of printheads, supporting optional white and varnish ink channels.

  • Dual-side operation with mirrored controls enables simple two-sided printing.

  • Eco-conscious LED technology reduces energy consumption, VOCs, and waste.

  • Six independently controlled vacuum zones ensure efficient media hold-down.

  • X-axis manual cutter & Y-axis slitter streamline flexible material finishing.

Poster

Questions About the
Radnor

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us
Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

126” (320cm)

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements



Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

18 (6 x 3 rows)

2 x 220V | Single-phase | 40A
1 x 120V | Single-phase | 20A

Dust free / climate controlled

68-77 °F (20-25 °C)

40-70% non-condensing

18’9” x 5’3” x 6’ 8” (576cm x 161cm x 207cm)

7,760 lbs. (3,519kg)

Series Features

Print Speeds

Express

Production

Quality

Single

Up to 2,002 sq ft/h

Up to 1,011 sq ft/h

Up to 505 sq ft/h

Dual

Up to 4,025 sq ft/h

Up to 2,055 sq ft/h

Up to 1,011 sq ft/h

Triple

Up to 6,146 sq ft/h

Up to 3,067 sq ft/h

Up to 1,506 sq ft/h

- Magnetic linear drive control for accurate dot placement at ultra-high speeds.
- High-volume ink jetting at an accurate level to support productivity.
- Six independently controlled vacuum zones ensure efficient hold-down, with the right amount of vacuum where you need it, when you need it.
- Variable drop technology and 4 picoliter drop sizes for better color gradients and smoothing capability.

- Continuous Print Mode for rigid sheet production to maximize throughput.
- X-axis manual cutter and Y-axis slitter for printed flexible material to easily move through production to finishing or fulfillment.
- Mirrored operation control front and back of printer and easy foot pedal control.
- Smart design for both the input and output table with a flip-up extension for longer sheets.
- Left and right home registration point allow for simple two-sided printing.
- Automatic board registration ensures the right graphic on the right board.

- Extends your range of supported substrates, including lower-cost and added-value specialty media.
- Increases uptime and productivity with instant on/off and less maintenance.
- Drive down operating costs with less energy consumption and fewer consumable parts.
- Reduces waste with consistent color output and simple operation.
- Satisfies customer requests for a greener print solution with no VOCs, lower power consumption, and less waste and consumables.

Optional equipment

Up to three rows of printheads to best suit business needs with the option to upgrade speed and channels as needs change and develop in the future.

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Vanguard Digital Printing Systems delivers cutting-edge UV-LED technology, industry-leading support, and scalable solutions to help businesses maximize efficiency and profitability.
The Radnor is ideal for high-quality print production on acrylic, canvas, aluminum, PVC, vinyl, wood, paper, and more. Its hybrid design makes it a versatile solution for large-format print providers.
