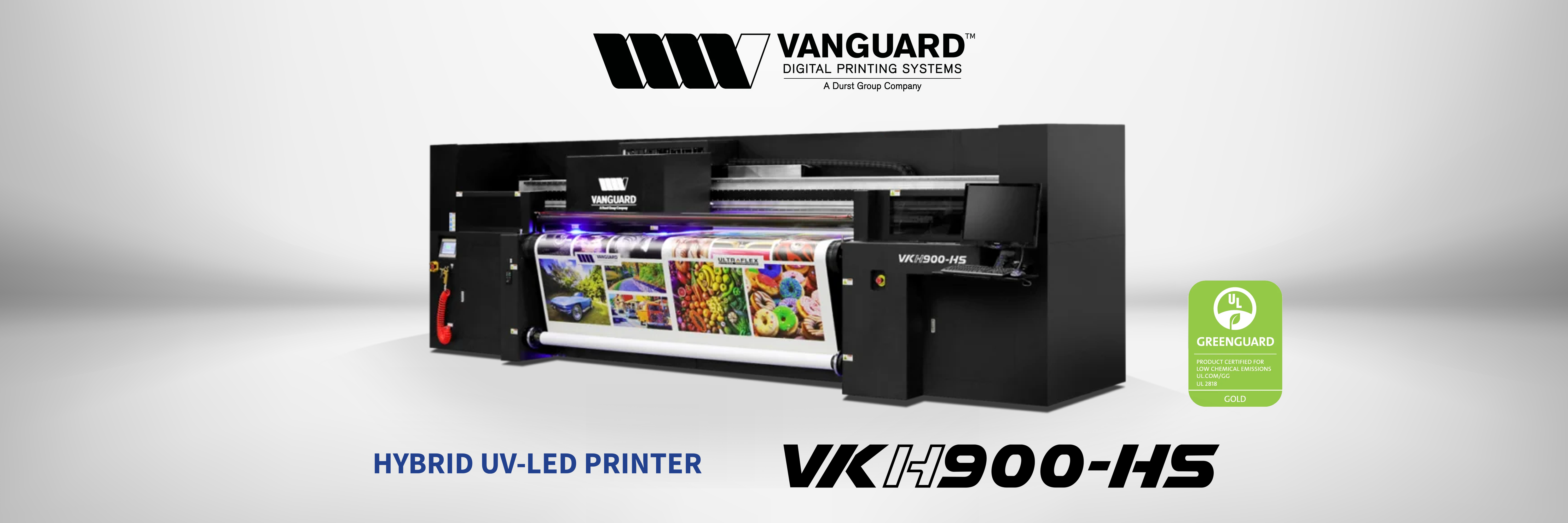

Vanguard Hybrid Printer VKH900-HS

VKH900-HS

HIGH PRODUCTION FLATBED LED UV PRINTER

VKH900-HS

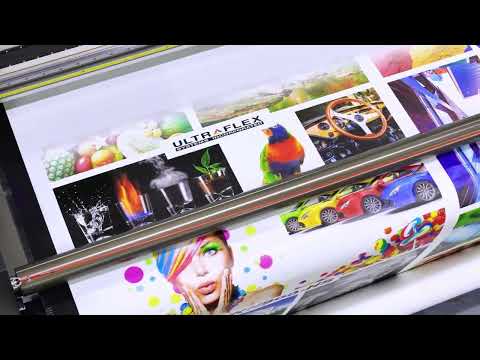

The Vanguard VKH900-HS is a versatile hybrid UV-LED printer that combines the power of flatbed and roll-to-roll printing for maximum efficiency and flexibility. With a 98-inch print zone, it accommodates rigid media up to 2.5 inches thick and industry-standard rolls up to 98 inches wide.

Key Features & Benefits

The VKH900-HS is a field expandable platform allowing up to 15 Kyocera KJ4A print head, in a 3 row configuration (3 each CMYKW). With a versatile print zone of 2.5m (98”) the VKH900-HS is designed to accommodate industry standard rolls up to 98” wide and flat media up to 2.5” thick and 10 lbs/sqft. As with all Vanguard printers this hybrid continues to utilize fully adjustable liquid-cooled UV LED lamps which will allow for printing on heat sensitive materials faster than competitive technologies.

Kyocera KJ4A printhead technology ensures high-speed precision printing.
Liquid-cooled UV-LED curing lamps allow printing on heat-sensitive materials.
Supports CMYK + White + Varnish ink configurations for expanded application potential.
Continuous Print Mode enhances rigid sheet production throughput.
Dual-side operation enables simple two-sided printing.

Questions About the
VKH900-HS Hybrid UV-LED

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Application Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

Kyocera KJ4A

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

15 (5 x 3 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

THREE ROW PRINT SPEEDS

Up to 2,975 sq ft/h

Up to 2,016 sq ft/h

Up to 1,250 sq ft/h

Up to 833 sq ft/h

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Vanguard Digital Printing Systems delivers cutting-edge UV-LED technology, industry-leading support, and scalable solutions to help businesses maximize efficiency and profitability.

The VKH900-HS is ideal for high-quality print production on acrylic, aluminum, PVC, vinyl, wood, paper, and more. Its hybrid design makes it a versatile solution for large-format print providers.
