Vanguard Roll to Roll Printing Equipment

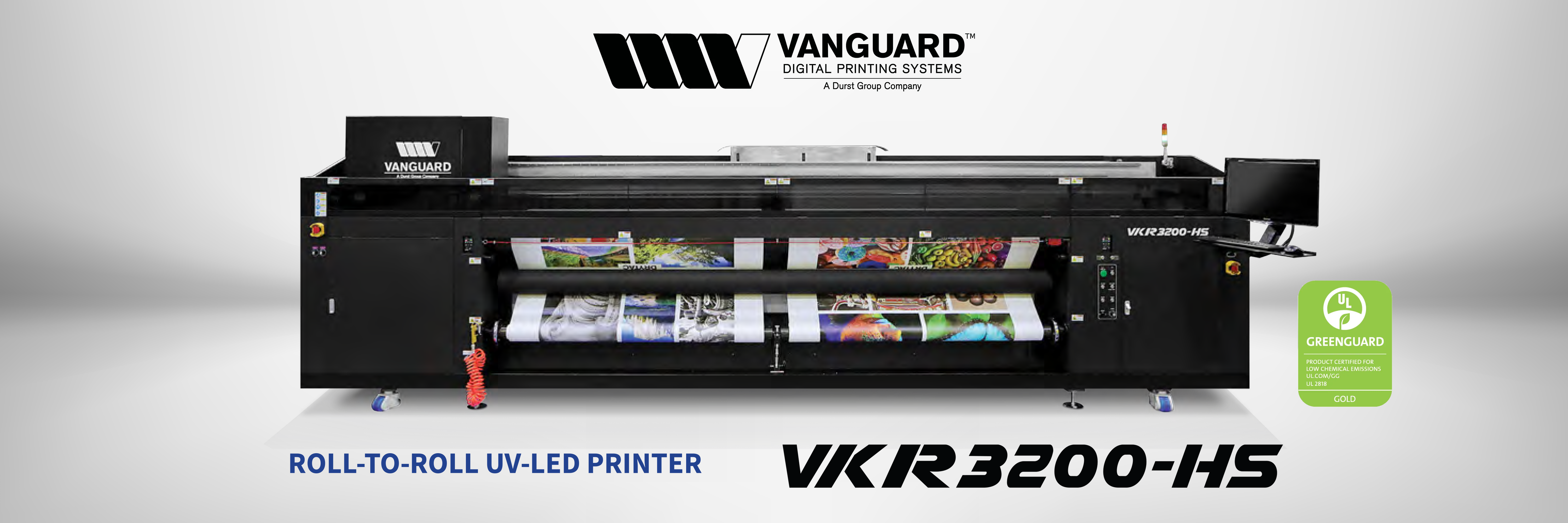

VKR3200-HS

ROLL TO ROLL UV PRINTER

VKR3200-HS

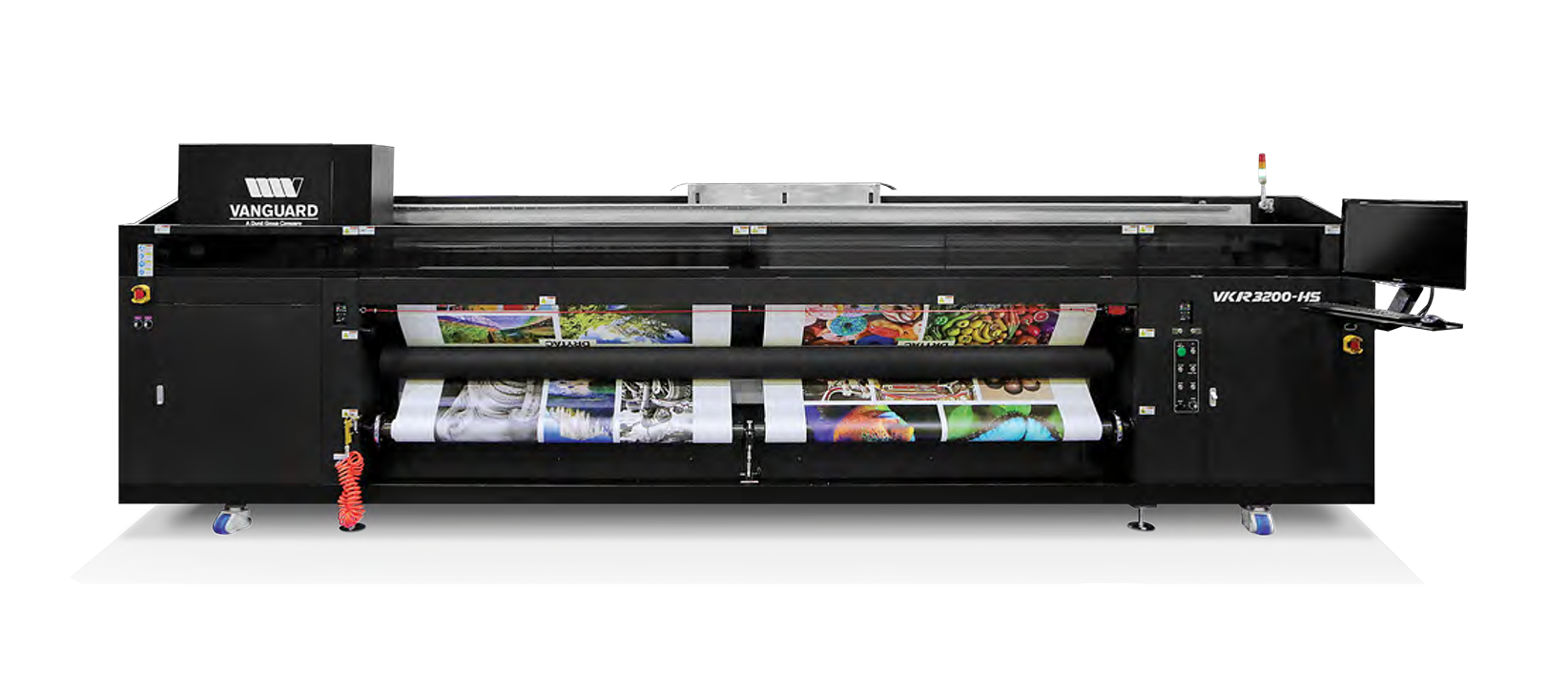

The Vanguard VKR3200-HS is a high-performance roll-to-roll UV-LED printer designed for speed, precision, and versatility. With a 3.2-meter (126”) width, it prints up to 3,000 sq. ft. per hour, making it ideal for banner, static cling, wall covering, and other flexible materials.

WHAT CAN I DO WITH A VKR3200-HS LED UV DIGITAL PRINTER?

Key Features & Benefits

The VKR2300-HS roll-to-roll provides the durability and finesse to accommodate a wide array of flexible materials. The robust material delivery system, dual-roll printing capability and ink catch allows for flawless day-after-day production on nearly any flexible roll stock material. With the Vanguard Digital VKR3200-HS you are only limited by your imagination!

Kyocera KJ4A printhead technology ensures precise dot placement for sharp text and vivid graphics.
Liquid-cooled UV-LED curing lamps provide instant on/off functionality, reducing energy consumption and maintenance costs.
Dual-roll printing capability allows simultaneous printing on two rolls, increasing throughput.
CMYK + White ink configuration expands application potential for clear, colored, dark, or metallic substrates.
Durst Workflow prepress & RIP software streamlines production efficiency.

Questions About the
VKR3200-HS?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Contact Us

Brochure

Applications Examples

Schedule a Demo

Technical Specifications

Working Area

Max Print Width

3.2m / 126”

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Kyocera

Up to 1800 dpi

Up to 8 (4x2 rows)

110 v | 20 A | 1 phase
220 v | 40 A | 1 phase

Dust free / climate controlled

Temperature: 32°F-104°F Humidity: 20%-80%RH

40-70% non-condensing

18’ 10” x 3’ 9.3” x 5’ 11”

6,834 lbs

Series Features

Print Speeds

Production

Quality

High Quality

Single

Up to 1,500 sq ft/h

Up to 600 sq ft/h

Up to 400 sq ft/h

Dual

Up to 2,900 sq ft/h

Up to 1,150 sq ft/h

Up to 800 sq ft/h

- 3 Level Greyscale with variable drop technology and 4 picoliter drop sizes for better color gradients and smoothing capability.
- Multi-roll printing capabilities allows for two rolls to be printed simultaneously for greater throughput.
- Optional mesh kit enables easy mesh printing, expanding application potential further.
- Durst Workflow prepress & RIP software solution with Vanguard interactive G.U.I..

- Magnetic linear drive control for precise dot placement for incredible print quality, and sharper lines and text.
- High-volume ink jetting at an accurate level to support productivity.
- Solid aluminum table with flatness of +/- 50 microns.
- Five-zone user-selectable vacuum system ensures hold-down as media travels across the plate.

- Extends your range of supported substrates, including lower-cost and added-value specialty media.
- Increases uptime and productivity with instant on/off and less maintenance.
- Drive down operating costs with less energy consumption and fewer consumable parts.
- Reduces waste with consistent color output and simple operation.
- Satisfies customer requests for a greener print solution with no VOCs, lower power consumption, and less waste and consumables.

Optional equipment

CMYK + White configuration options for expanded application potential with clear, colored, dark or metallic substrates

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Vanguard Digital Printing Systems is committed to innovation, reliability, and superior print technology. With cutting-edge UV-LED solutions, high-speed production capabilities, and industry-leading support, Vanguard ensures maximum efficiency and profitability for your business.
