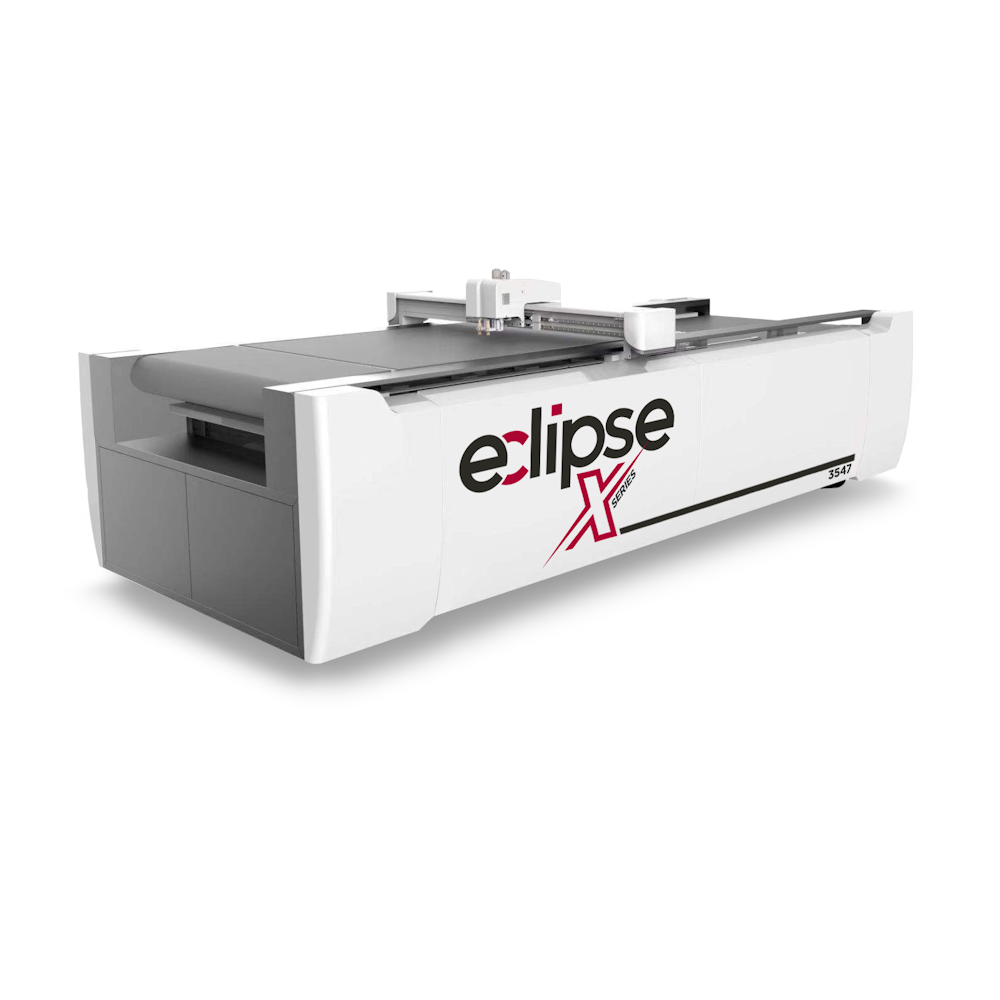

Eclipse 3547 Digital Die Cutter

The Eclipse 3547 Digital Die Cutter is a die free flatbed cutting solution designed for the printing, packaging, and sign industries. It is a cost-effective solution for sample making, short-run production of adhesive sheets, business cards, specially shaped cards, invitations, labels, packaging, tags, and more. The Eclipse 3547 features an integrated touch Screen PC for full operation at your finger tips. Process materials up to 10mm thick and up to B5 (35"x47") sheet size.

Performance and Reliability

No Cutting Dies
The Eclipse 3547 is integrated with universal cutting tool, oscillating tool, drag knife, kiss-cut tool, and creasing wheel for die free cutting. Options are available for perforation and v-cut tools.

Automatic Feeding System
Fully automatic feeding system and conveyor for continuous feed and cut production, eliminating the need for a dedicated operator. The high-definition CCD camera automatically positions materials and reads registration marks for precise cutting. The Eclipse 3547 model is capable of dual sheet feeding for faster processing.

Software
Eclipse Software Suite features I Bright and CutterServer designed for file reconginiztion of PDF, PET, DXF, HP/GL and is compatible with Kasemake, Artios CAD, Adobe Illustrator, Box Magician and much more. Also works with most rip programs for quick workflow management. Optional QR/Barcode management system available.

Stacker
Designed for continuous feeding of material stack up to 15.5" tall or 600lbs.

Features

• Up to 5 tools on a single sheet

• 4kw vacuum power absorption
• Oscillating tool for up to 6mm thick materials
• Automatic feeding system for continuous operation
• Precise automated positioning system. QR/Barcode Management System

Tools

• Universal cutting tool
• Oscillating tool
• Drag knife
• Kiss-cut tool
• Creasing wheel for die free cutting

Productivity You Can Depend On

INCREASE - Capacity and productivity to take on more jobs
IMPROVE - Speed and accuracy of production
CONFIDENCE - In precision and reliability of output day after day
DECREASE - Waste, downtime and labor costs
REMOVE - Production obstacles and process in finishing
