Mimaki Roller Table Assembly Set (2 Units) for UJ330H-160 | Part: OPT-01020

Expand your production capabilities on the Mimaki UJ330H-160 with the official Mimaki Roller Table Assy Set (Part # OPT-01020). Direct printing onto thick, rigid board materials completely eliminates the need for costly outsourcing or labor-intensive mounting processes. This heavy-duty, Mimaki-engineered feed table system delivers stable, perfectly level support for rigid substrates—ensuring consistent accuracy, sharp print alignment, and a seamless workflow.

Industrial Build & Compact Storage

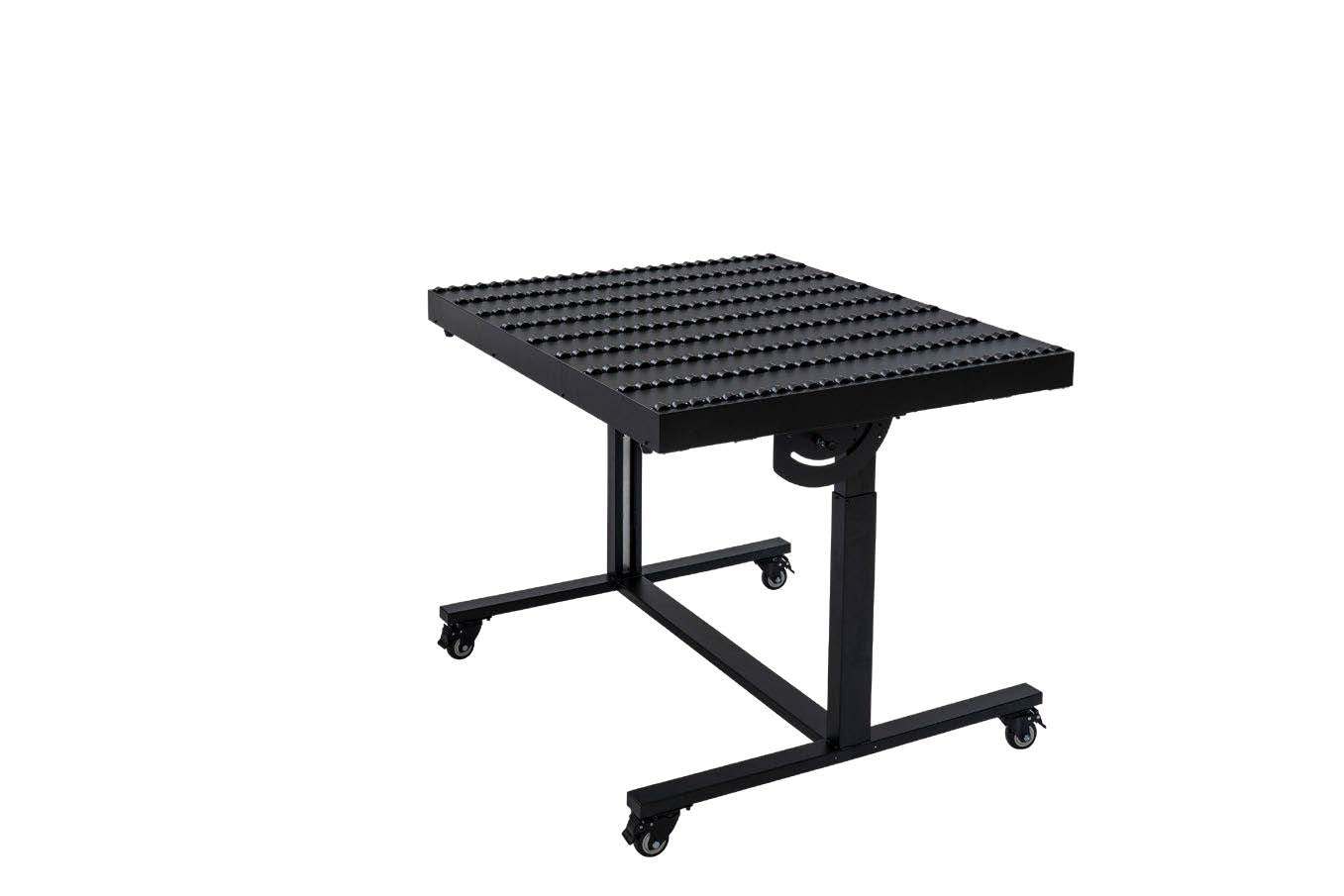

Each individual table features a massive 48" wide x 40" deep surface area equipped with smooth rolling wheels to glide rigid materials effortlessly into the machine.

• 176 lbs. Weight Capacity: Built to hold heavy, commercial-grade rigid materials safely (up to 176 lbs per individual unit).

• Manual Crank Height Adjustment: Easily align the table perfectly to the height of the printer's vacuum belt. Simply adjust the manual crank and set the built-in millimeter indicator position to match your exact media thickness.

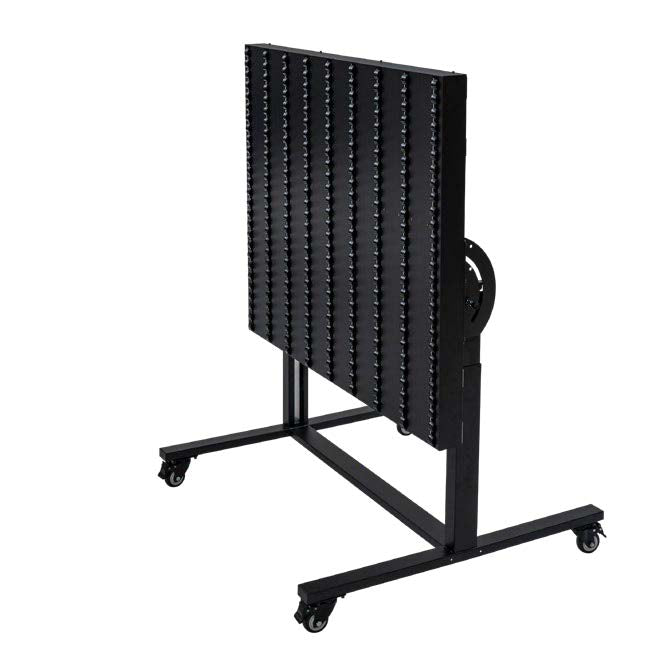

• Foldable Design: When not in use, the tables fold down vertically into a compact footprint, allowing you to reclaim valuable shop floor space.

⚠️ Configuration Guide: How Many Sets Do You Need?

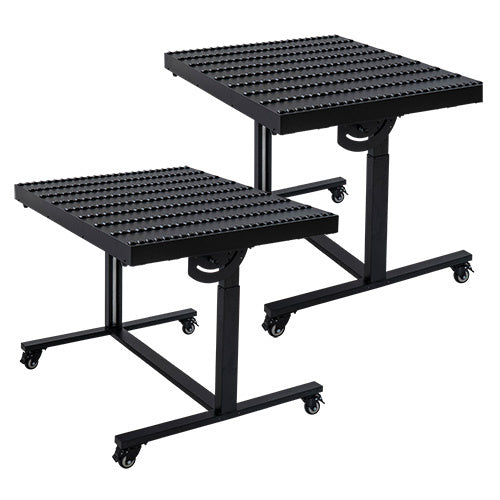

This product is sold as 1 Set (Includes 2 Units: 1 for the front/feed side and 1 for the rear/take-off side). Depending on your workflow and the size of the sheets you run, you may require additional support.

Please review the sizing rules below and measure your workspace to make adequate room for full-sheet workflows:

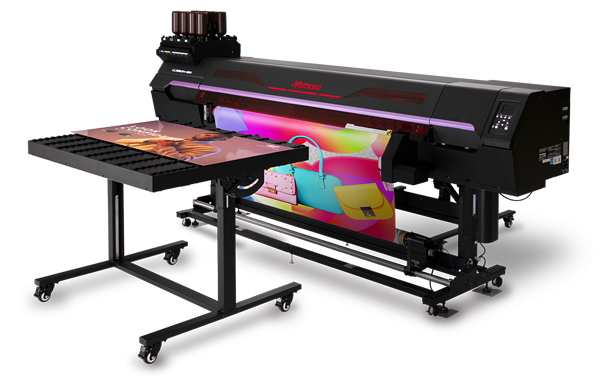

• For Media Up to 51.2" Long: Order One (1) Set. This provides one unit at the front and one unit at the rear of the machine, perfect for standard rigid boards.

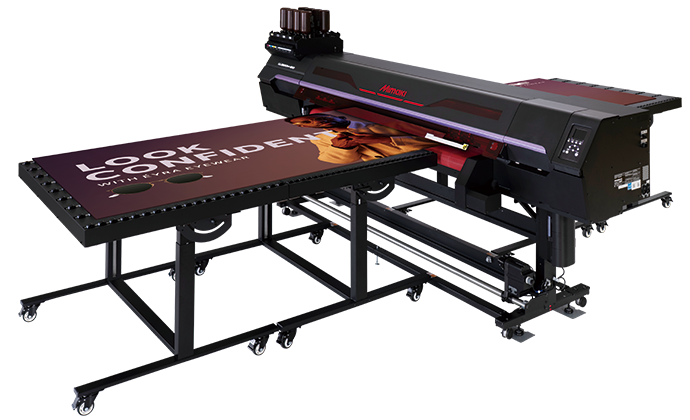

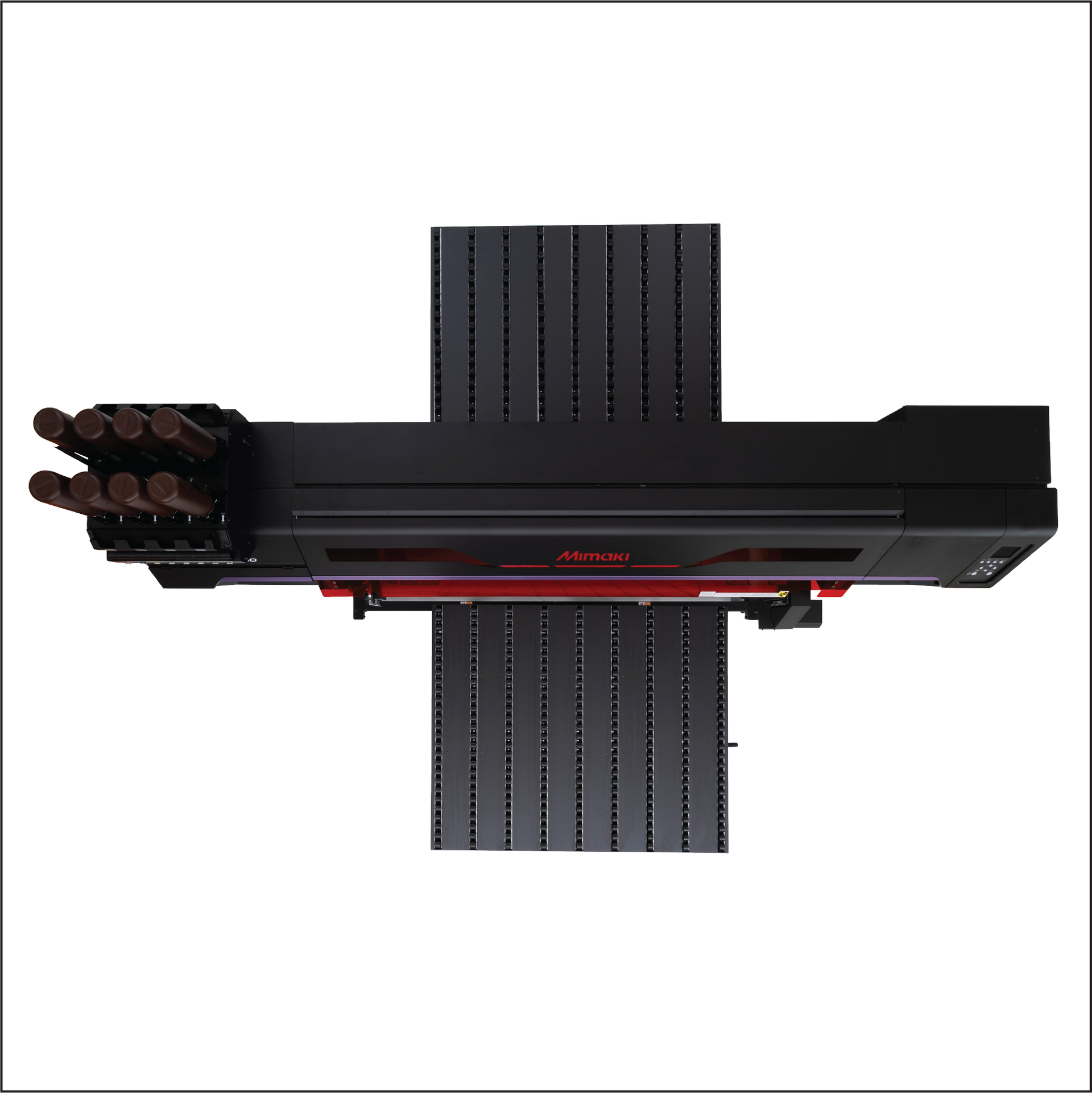

• For Full-Size Sheets / Media Up to 98.4" Long: Order Two (2) Sets (4 Units Total). To run full-size sheets seamlessly, you will need a complete setup consisting of two units joined together on the front feeding side and two units joined together on the rear exit side.

Key Technical Specifications

• Part Number: OPT-01020 (Volume: 1 Set / 2 Units)

• Compatible Models: Mimaki UJ330H-160

• Dimensions (Per Table Unit): 48" W x 40" D

• Weight Capacity: 176 lbs (80 kg) per unit

• Height Control: Manual hand-crank with a precise millimeter alignment gauge

• Portability: Locking heavy-duty casters with a space-saving folding hinge mechanism
