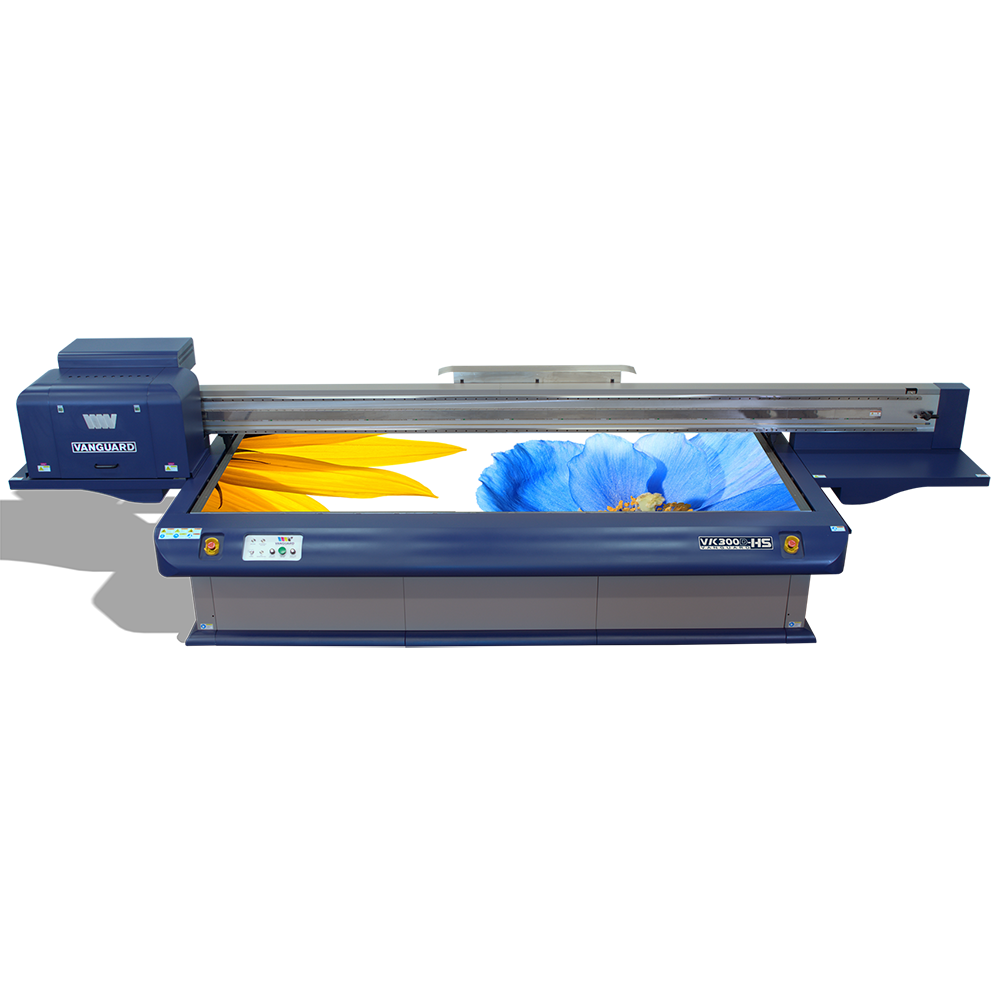

Vanguard VK300D-HS (Demo Unit) 5X10 Flatbed Led UV Printer With Kyocera KJ4A Printheads

MEET THE VK300D-HS
The Vanguard Digital VK300D-HS is the impressive high speed version of our four time award winning VK300D series.

The VK300D-HS comes equipped with industrial Kyocera KJ4A print heads that deliver print dots as small as 3.5pl ensuring tight dot placement for vivid output on virtually any substrate up to 4” thick. Other features include auto height detection, one-touch pin registration, front-to-back and back-to-front printing, water cooled LED curing technology, ionization bars, 6 reversible vacuum zones and supports CMYK, Lc, Lm, W & V. The VK300D-HS is engineered to grow with your business and is field expandable up to 10 print heads via 2 print rows.

Print Speed
Single Row

PRODUCTION
MODE

1,500
sq ft | hour

QUALITY
MODE

600
sq ft | hour

HIGH QUALITY
MODE

400
sq ft | hour

Print Speed
Dual Row

PRODUCTION
MODE

2,900
sq ft | hour

QUALITY
MODE

1,150
sq ft | hour

HIGH QUALITY
MODE

800
sq ft | hour

VK300D-HS GROWS
with your business

Need to increase production? Add print heads!
single row of heads = up to 30 boards per hour
dual row of heads = up to 60 boards per hour

Need more colors? Add ink!
white, clear, light cyan, light magenta, and spot optional

WHAT CAN I DO WITH A VK300D-HS UV DIGITAL PRINTER?
With the VK300D-HS from Vanguard Digital Printing Systems, you are only limited by your imagination. You can print on:

PVC
Vinyl
Acrylic
Canvas
Paper
Foam
Coroplast
Styrene
Wood
Metal
Plastic
Glass
Leather
Stone
Brick
Porcelain
Rubber
Fabric
Cardboard
And more..

The versatility of the VK300D-HS is its most valuable asset. You’ll have the ability to not only print everyday signage, but also wood, metal, polycarbonate, aluminum, acrylic, glass, mirror and so much more. VK300D-HS’s ability to print on media up to 4” thick, auto-height detection, one-touch pin registration, front to back and back to front printing and reversible 6-zone vacuum, make this printer the right choice for your UV flatbed printing needs.

SERVICEGUARD
on call & ready to serve

Our national service team is ready when you need us. Just a phone call puts our group into action to listen, diagnose and get you back up and running whether it’s over the phone or an onsite visit. Our national service team is ready when you need us. Just a phone call puts our group into action to listen, diagnose and get you back up and running whether it’s over the phone or an onsite visit.

VANGUARD
CUTTING EDGE TECHNOLOGY
van·guard /'van?gärd/
a group of people leading the way in new developments or ideas.

ALIGNGUARD
Air assisted pin registration provides precise media alignment with every print.

PRESSUREGUARD
Provides stability within the negative pressure system which increases the life cycle of critical components.

CUREGUARD
Precisely adjustable LED curing technology allows you to print to more substrates with greater control.

ACCUGUARD
A metal raster strip provides the most accurate dot placement in the industry.

PRINTGUARD
Reduce time and waste with pinpoint accurate print resuming after a crash sensor has been reset.

NOISEGUARD
Twin mufflers reduce the noise level of the powerful media vacuum pumps.

BANDGUARD
Virtually eliminate chromatic banding, allowing you to print at faster speeds and better quality.

TIMEGUARD
Increase productivity and reduce labor by accurately printing from front to back and back to front.

MEDIAGUARD
Measure media thickness with our auto-height detection system in just a matter of seconds.

STATICGUARD
Be proactive by reducing static charges on acrylics and other positively charged substrates.

***All Vanguard Digital printers are CE certified and can be CSA certified upon request.
