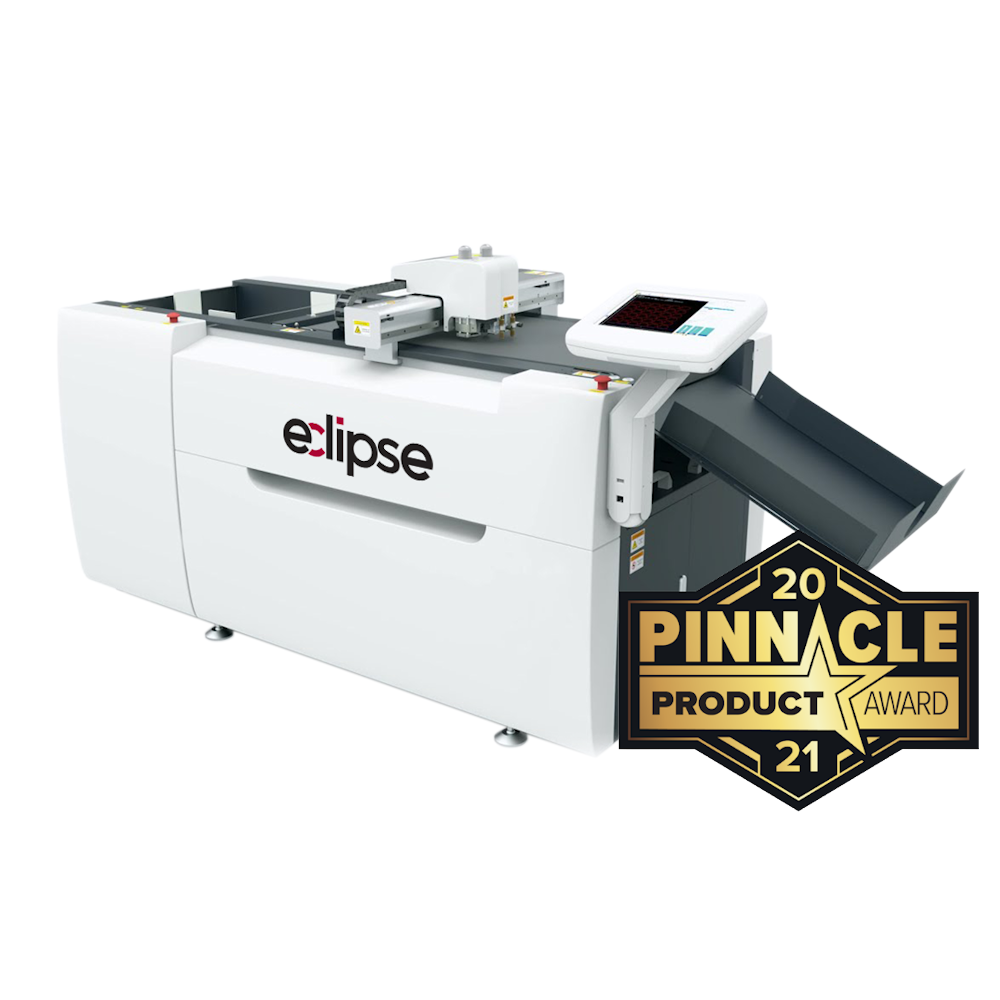

Eclipse 2029 Digital Die Cutter

The Eclipse 202 Digital Die Cutter is die free flatbed cutting solution for sheets of up 20 inches x 29 inches. The Eclipse 1523 is a cost-effective solution designed for the Printing, Packaging and Sign industries. It is a cost effective solution for sample making and short-run production of adhesive sheets, business cards, specially shaped cards, invitations, labels, small packaging, tags and more.

Performance and Reliability

No Cutting Dies
The Eclipse is integrated with a oscillating tool, cutting tool, creasing wheel tool and plotting pen for die free cutting. Process materials up to 6mm thick.

Combination Cutting and Creasing Functions
Standard cutting & creasing features include Decal Cut, Kiss Cut, Creasing, and oscillating knife cutting of dense stock.
Automatic Positioning System

The high-definition CCD camera automatically and positions materials for precise cutting.

Automatic Feeding System
Fully automatic feeding and conveyor system for continuous cutting of materials for a more efficient workflow and production. Roll Feed Option available for Roll to Sheet processing needs.

Stacker
Designed for continuous feeding of material stack up to 4.5” tall (400 pieces of 250gsm/92lb cover)

Software
Eclipse Software standard file recognition of PLT, DXF, HP/GL is compatible with Kasemake, Artios CAD, Corel, Adobe Illustrator, Box magician, etc.
QR/Barcode Management System (option)

Features

• Up to 4 tools on a single sheet

• 4kw vacuum power absorption
• Oscillating tool for up to 6mm thick materials
• Automatic feeding system for continuous operation
• Precise automated positioning system. QR/Barcode Management System

Tools

• Oscillating tool

• Drag knife
• Kiss-cut tool
• Creasing wheel for die free cutting

Productivity You Can Depend On
INCREASE - Capacity and productivity to take on more jobs
IMPROVE - Speed and accuracy of production
CONFIDENCE - In precision and reliability of output day after day
DECREASE - Waste, downtime and labor costs
REMOVE - Production obstacles and process in finishing
