UCJV330-160 UV-LED Roll Printer w/cutting
$32,995.00
Zoom
Description

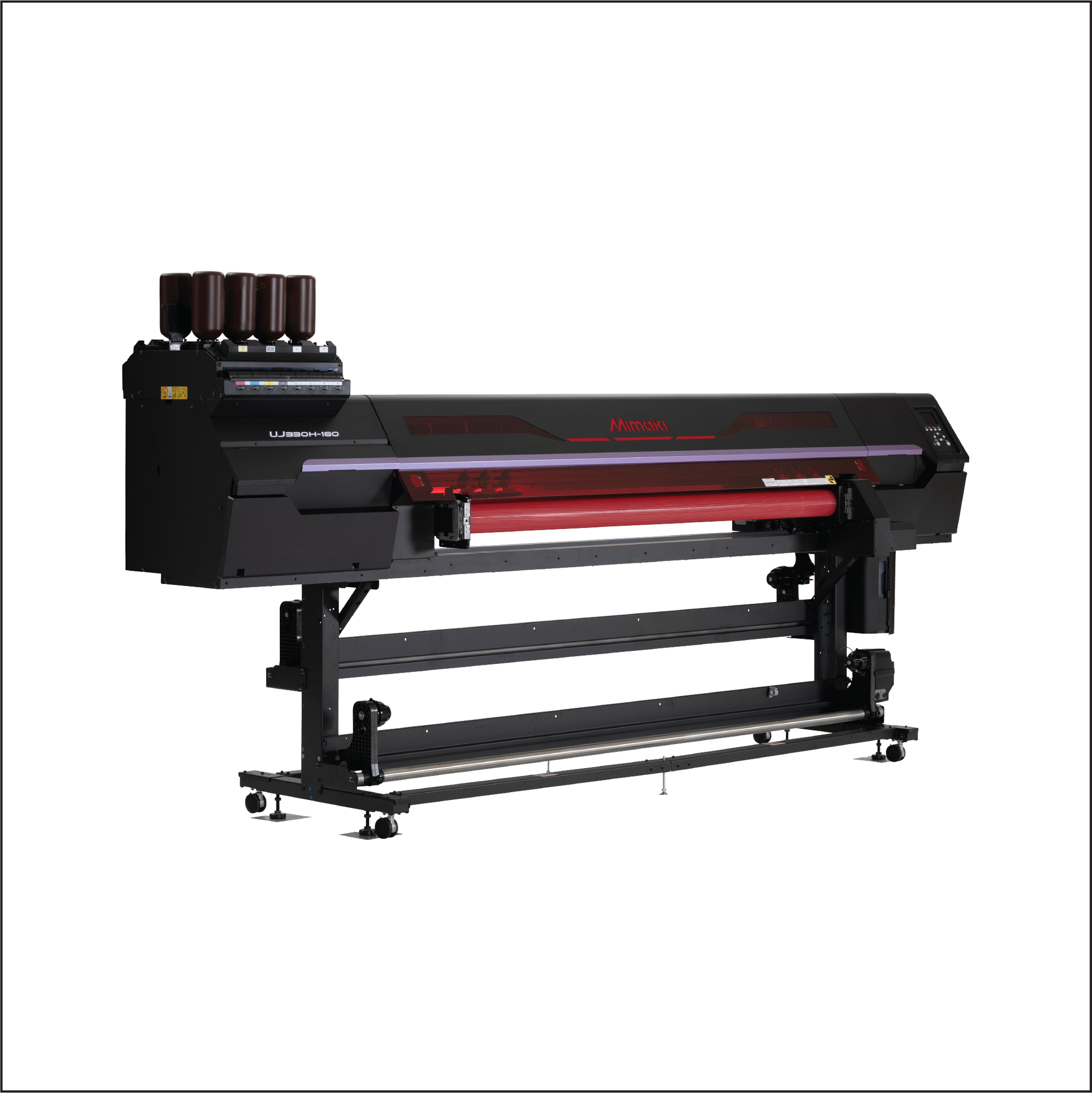

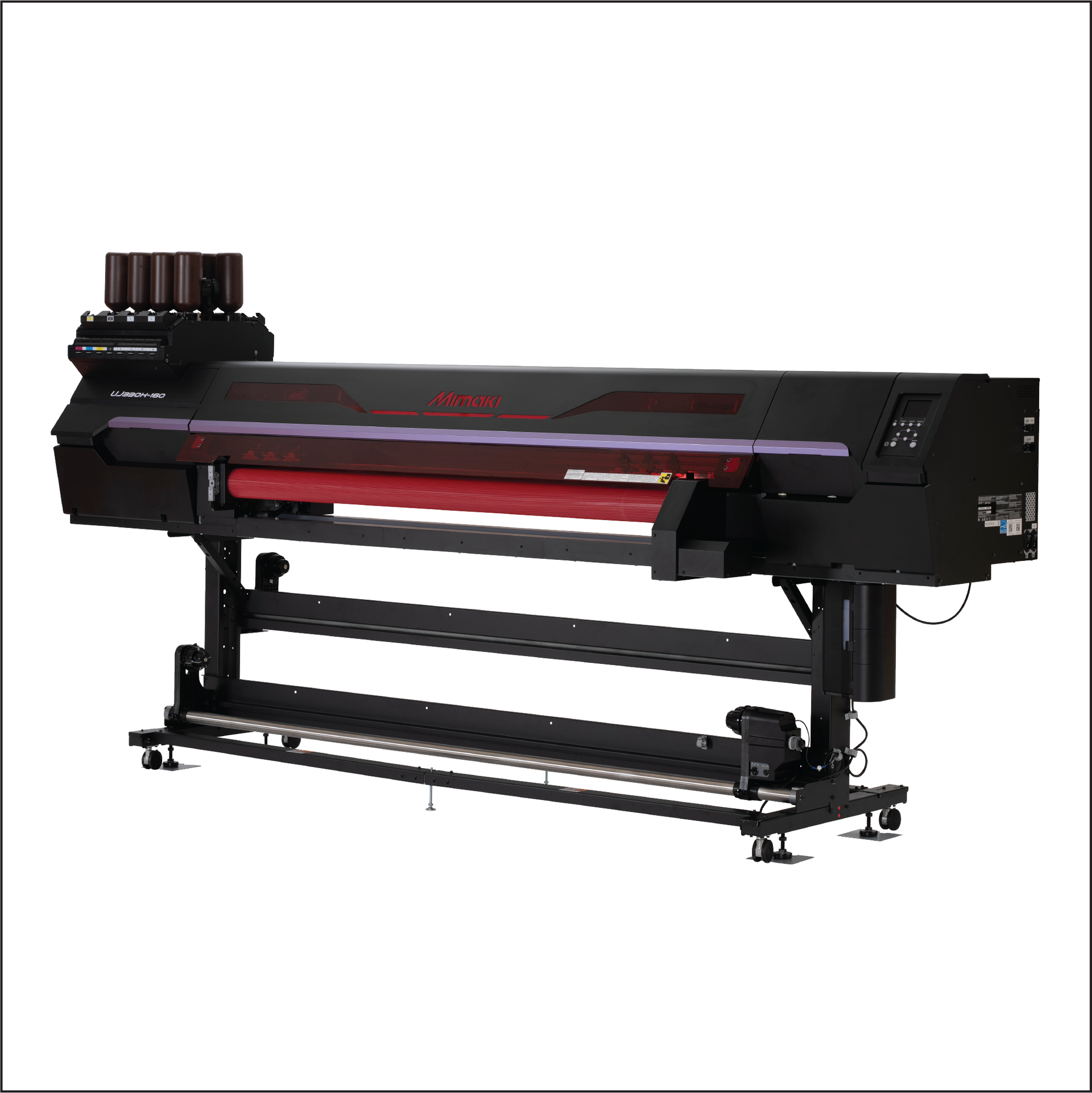

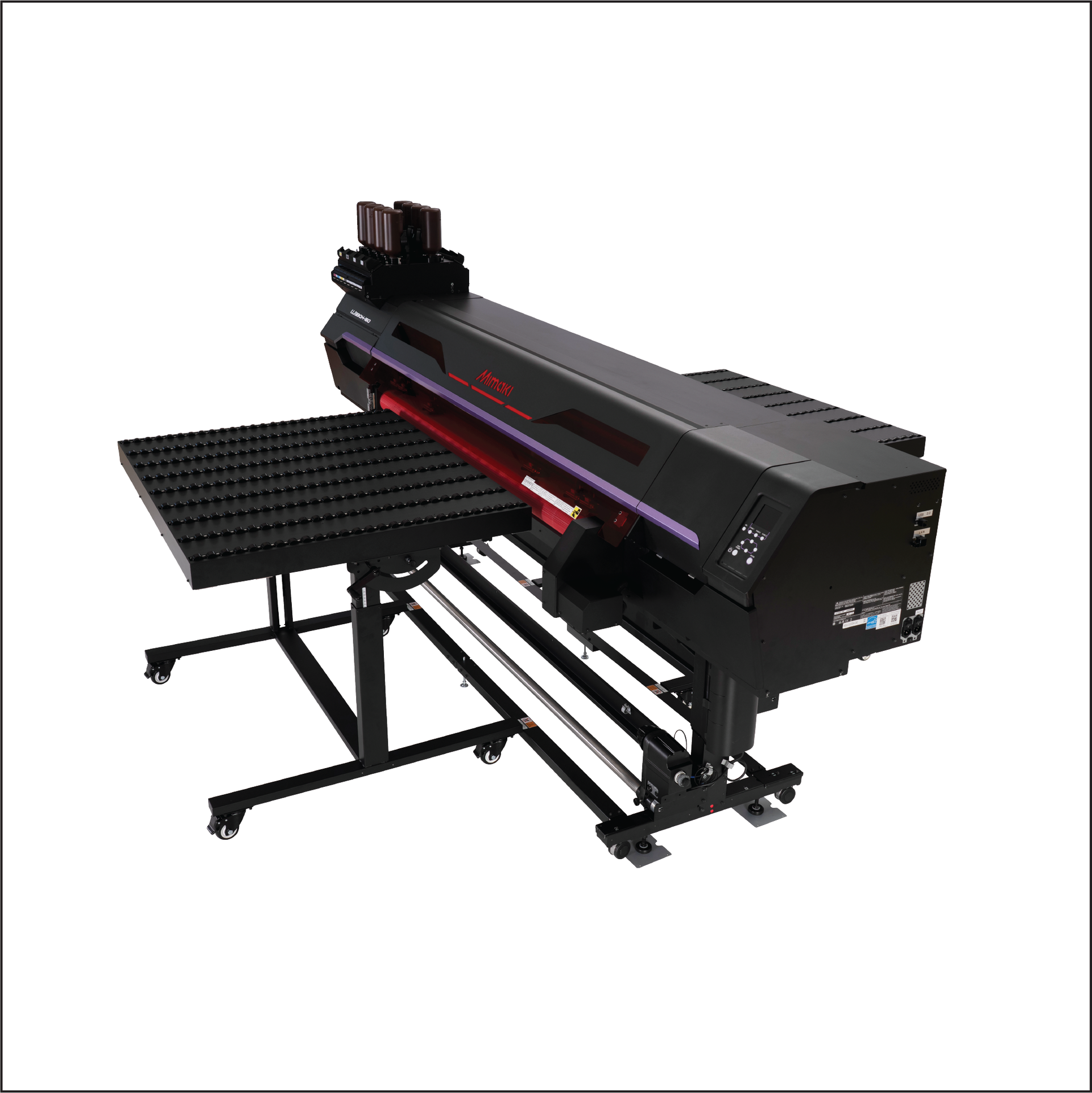

The Mimaki UJ330H-160 represents the next evolution in hybrid wide format printing. Built on Mimaki’s proven 330 Series platform, this advanced hybrid UV printer seamlessly handles both roll media and rigid boards in a single production system.

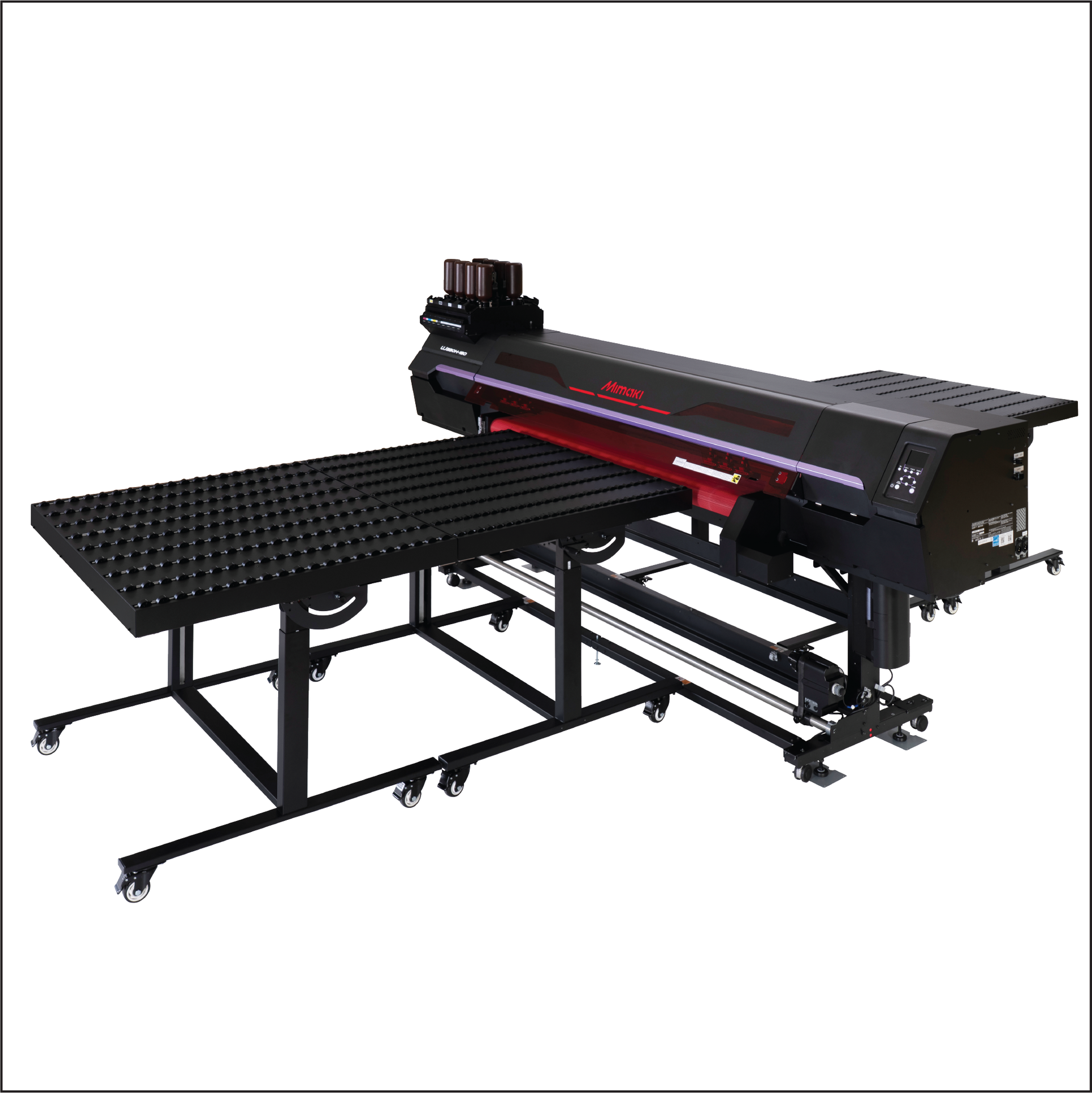

Designed for shops that need maximum flexibility, the UJ330H-160 allows operators to switch between roll and rigid applications within minutes. From window graphics and vehicle wraps to large aluminum composite signage, the printer delivers exceptional image quality, consistent color reproduction, and high production efficiency.

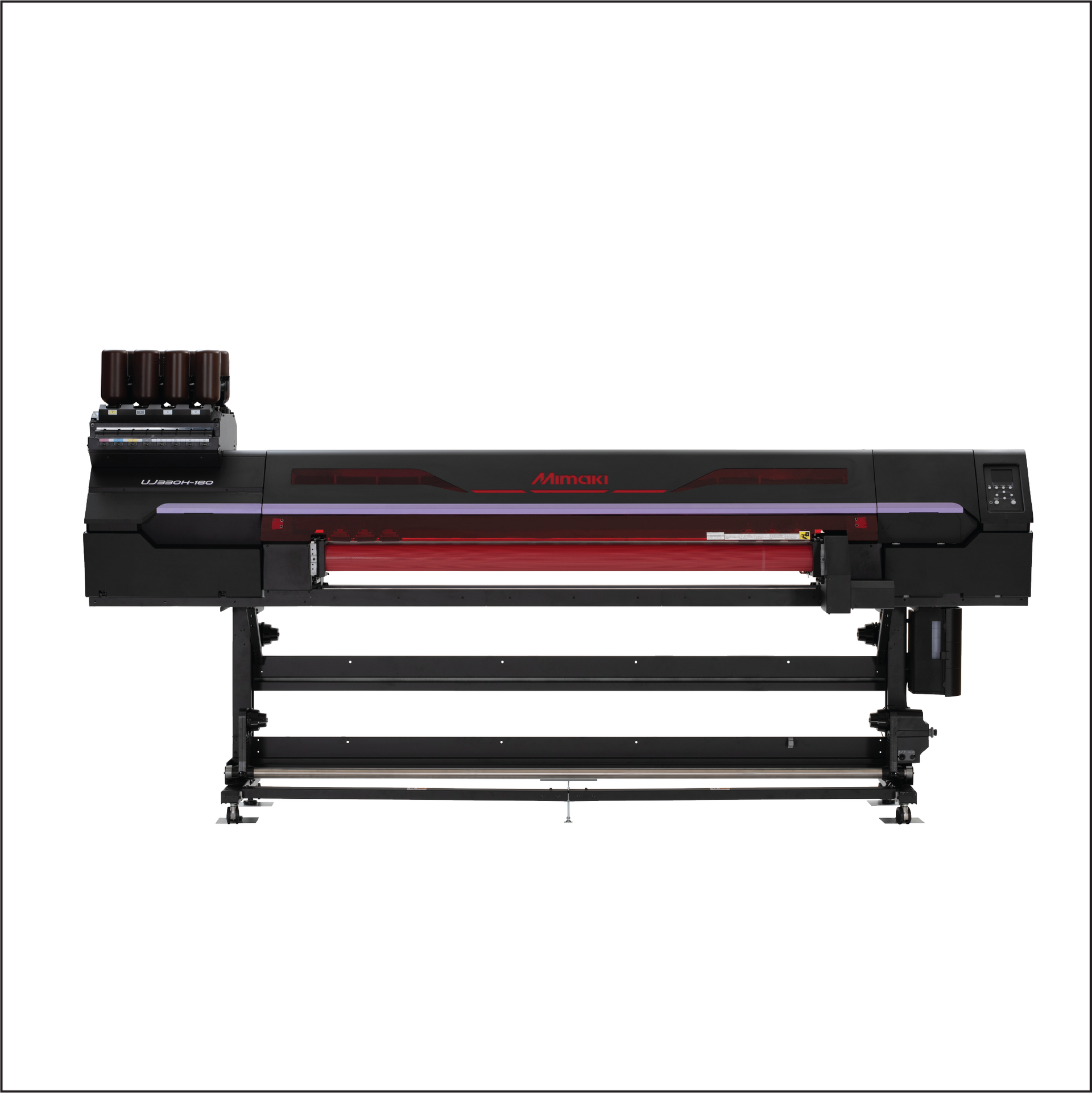

Dual staggered printheads combined with Mimaki’s advanced imaging technologies provide resolutions up to 1200 × 1800 dpi, producing smooth gradients, sharp text, and vibrant graphics across a wide range of substrates.

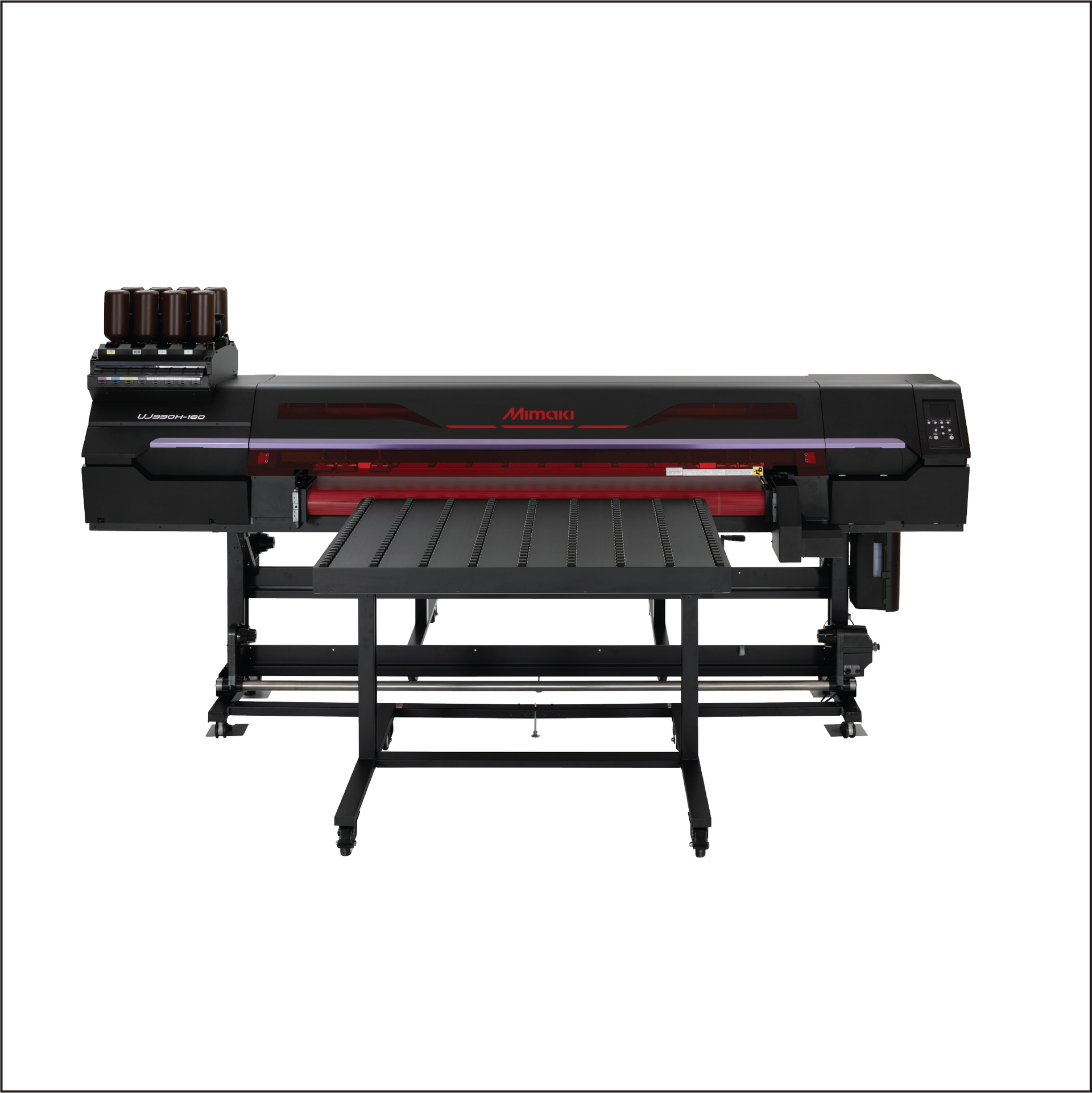

The vacuum belt transport system eliminates pinch rollers, allowing accurate printing on thin films and flexible materials while preventing marks and material distortion. With 2 inch media clearance, the system can process heavy rigid substrates including thick boards and signage panels.

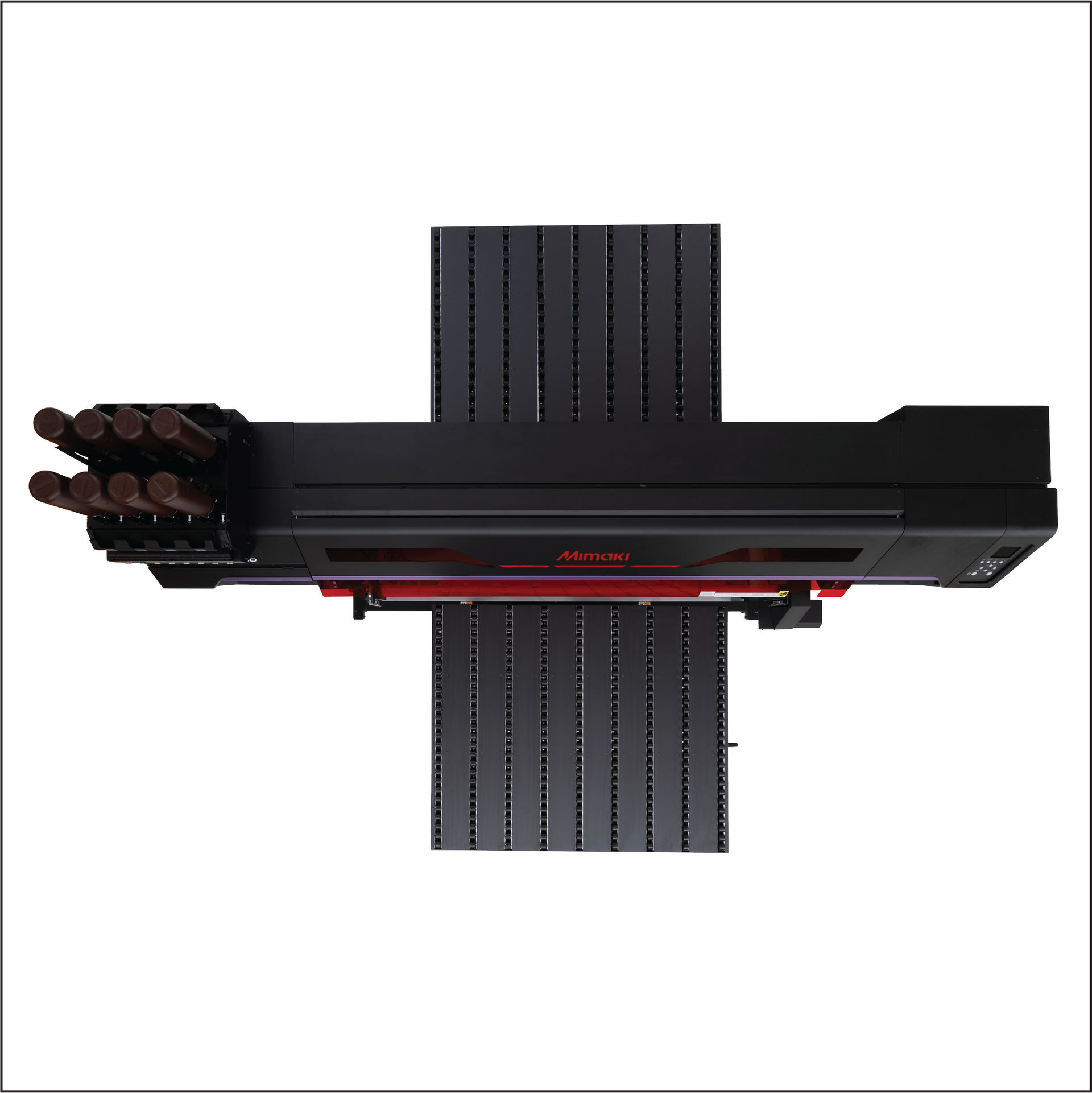

With support for multilayer printing, textured 2.5D effects, and clear ink finishing, the UJ330H-160 enables shops to produce premium value-added graphics, specialty signage, and dimensional prints.
Key Features
• Hybrid roll and rigid printing in one machine
• Dual printheads for speed and precision
• Maximum resolution up to 1200 × 1800 dpi
• Vacuum belt conveyor system for stable media transport
• Supports multilayer printing and 2.5D texture effects
• Clear ink for gloss and matte finishes
• Automatic print monitoring and production tracking
• UV inks free of SVHC and CMR substances
• Energy efficient design with maximum power draw of only 1.6 kW
Core Mimaki Technologies
• NCU Nozzle Check Unit
• NRS Nozzle Recovery System
• DAS2 Dot Adjustment System
• VDT Variable Dot Technology
• MWDT Mimaki Waveform Control
• MAPS4 Advanced Pass System
• Mimaki PICT Production monitoring
Applications
| Application Type | Typical Output |
|---|---|
| Signage Production | Aluminum composite panels, rigid signage |
| Vehicle Graphics | Vehicle wraps, decals |
| Retail Graphics | Window graphics, POS displays |
| Packaging | Short run packaging prototypes |
| Decorative Printing | Textured prints, dimensional graphics |
| Industrial Applications | Specialty coated substrates |
Technical Specifications
| Specification | Details |
|---|---|
| Print Heads | 2 heads, staggered configuration |
| Print Bars | 4 bars per head |
| Print Resolution | Y 600 or 1200 dpi, X 600 / 900 / 1200 / 1800 dpi |
| Maximum Print Speed | 236.8 sq ft per hour (22 sqm per hour) |
| Maximum Print Area | 4 ft × 11 ft rigid |
| Maximum Media Width | 64 inches (1620 mm) |
| Maximum Media Thickness | 2 inches (50 mm) |
| Maximum Media Weight | Rigid up to 55 lbs (25 kg), Roll up to 99 lbs (45 kg) |
| Ink Type | ELS-170 UV curable |
| Ink Package | 1 liter bottles |
| Interface | Ethernet 1000BASE-T, USB 2.0 Hi-Speed |
| Power Supply | AC 100-120V or 200-240V ±10 percent |
| Maximum Power Consumption | 1600 W |
| Average Power Use | 800 W |
| Sleep Mode | Less than 4.5 W |
Dimensions and Weight
| Specification | Measurement |
|---|---|
| Machine Size without Tables | 126.9 × 30.9 × 55.9 inches |
| Machine Size with One Table | 126.9 × 104.9 × 55.9 inches |
| Machine Size with Two Tables | 126.9 × 185.5 × 55.9 inches |
| Weight | 849 lbs (386 kg) |
Operating Environment
| Condition | Range |
|---|---|
| Temperature | 68°F to 86°F (20°C to 30°C) |
| Humidity | 35% to 65% |
Certifications
Compliant with IEC 62368-1, CB, CE, EMC, Low Voltage Directive, RoHS, REACH, FCC Class A, VCCI Class A, KC, RCM, EAC, UKCA and EnergyStar.
Ink Compatibility
| Ink System | Colors Available |
|---|---|
| ELS-170 | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear |
| ELS-175 | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear |
| LUS-210 | Cyan, Magenta, Yellow, Black, White |
Available in 1 liter bottles.
