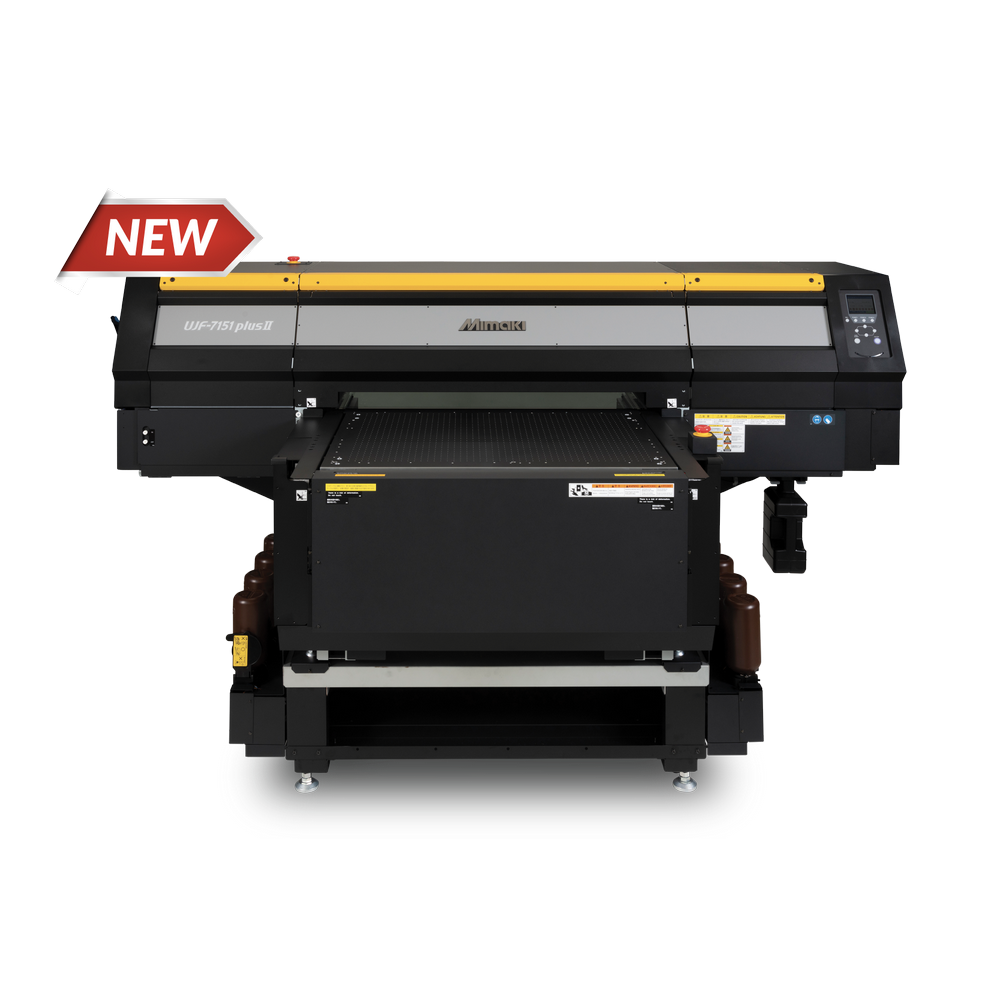

Mimaki UJF-7151 Plus II Multipurpose UV-LED Flatbed Printer

The Mimaki UJF-7151 Plus II is a next-generation UV-LED flatbed printer engineered for high-precision, industrial-grade direct-to-object printing. With a 28" × 20" (710 × 510 mm) print area and support for media up to 6.02" (153 mm) thick and 66 lbs (30 kg) in weight, it’s ideal for signage, awards, packaging, and personalized product applications.

Key Features
Ultra-High Resolution – Up to 1800 dpi for razor-sharp detail and smooth gradients
Industrial Productivity – Up to 190% faster than the previous model in 4-color mode (22 beds/hour)
8-Head Staggered Configuration – Enables simultaneous color and spot layer printing
Rigid & Flexible Ink Support – Compatible with LH-100, LUS-120, and LUS-350 UV inks
Raised Effects & Braille – Supports textured printing and ADA-compliant signage
Kebab Option Compatible – Enables 360° cylindrical printing on bottles, tumblers, and more
Advanced Maintenance Systems – Includes Nozzle Check Unit (NCU), Nozzle Recovery System (NRS), and ink circulation for uptime stability
Color Gloss Mode – Achieve glossy or matte finishes without clear ink
MDL Command Support – Seamless integration with automated workflows and jig printing

Specifications
Max Print Area – 28" × 20" (710 × 510 mm)
Max Media Thickness – 6.02" (153 mm)

Max Media Weight – 66 lbs (30 kg)
Print Resolution – Up to 1800 dpi
Interface – USB 2.0 Hi-Speed | Ethernet 1000BASE-T
Operating Environment – 59–86°F (15–30°C), 35–65% RH
Dimensions (W × D × H) – 87" × 62" × 51" (2203 × 1580 × 1293 mm)

Power Consumption – 1.3 kW or less

Applications
Promotional Products – Pens, keychains, phone cases, and awards
Industrial Parts – Serial plates, control panels, and component marking
Packaging & Prototypes – Cartons, bottles, and thermoformed items
ADA Signage – Braille and raised-text compliant graphics

Why Choose the UJF-7151 Plus II?
🔹 Precision Meets Power – Industrial-grade build with fine-detail output
🔹 Versatile Media Handling – From flat substrates to cylindrical objects
🔹 Eco-Friendly Inks – GREENGUARD Gold certified, low-VOC UV-LED inks
🔹 Workflow Automation – MDL support and RasterLink 7 for variable data and jig printing
