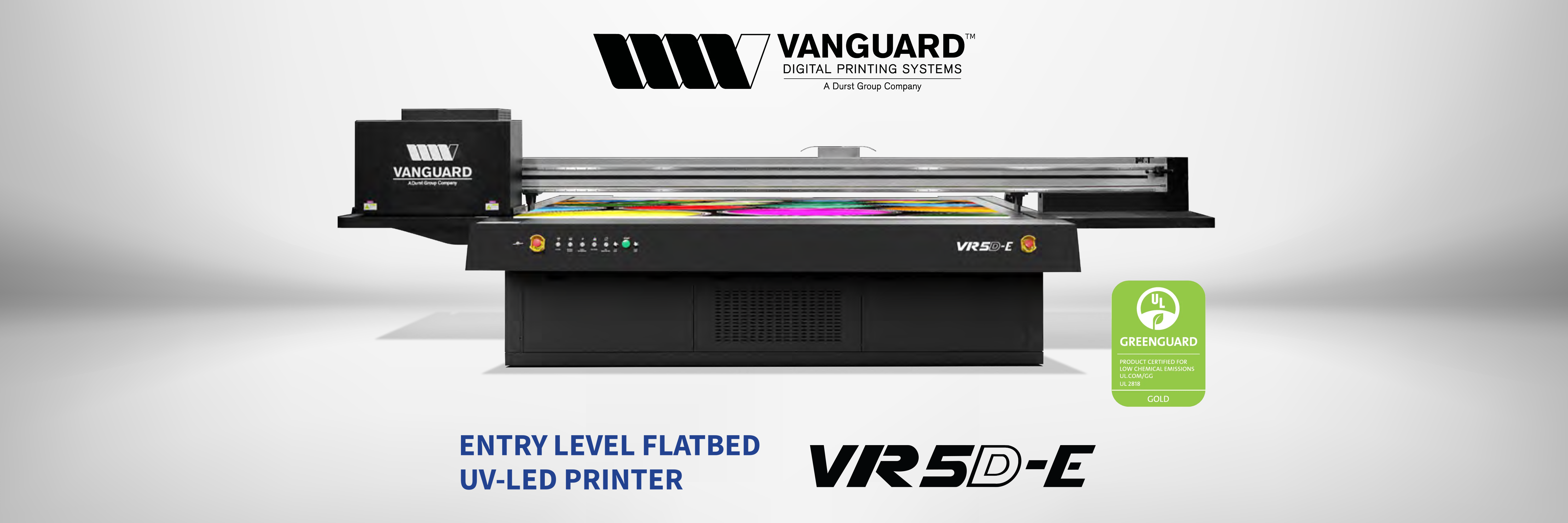

Vanguard Flatbed Printer VR5D-E

VR5D-E

ENTRY LEVEL FLATBED LED UV PRINTER

VR5D-E

The Vanguard VR5D-E is an entry-level flatbed UV-LED printer designed for high-speed, precision printing in demanding environments. With a 4’ x 8’ print area, it features Ricoh Gen5 printheads, allowing scalable configurations of up to 10 printheads for greater versatility and speed.

Key Features & Benefits

The versatility of the VR5D-E is its most valuable asset. You’ll have the ability to not only print everyday signage, but also wood, metal, polycarbonate, aluminum, acrylic, glass, mirror and so much more. The VR5D-E’s ability to print on media up to 4” thick, auto-height detection, one-touch pin registration, front to back and back to front printing and reversible 4-zone vacuum, make this printer the right choice for your UV flatbed printing needs.

Dual-channel Ricoh Gen5 printheads enable two-color printing per head.

BandGUARD technology ensures bi-directional print accuracy for higher quality with fewer passes.

Auto-height detection & one-touch pin registration streamline setup and operation.

Expandable ink configurations, including optional white and varnish channels.

Reversible 4-zone vacuum system ensures optimal media hold-down.

Applications

The VR5D-E is ideal for signage, promotional displays, specialty materials, and industrial applications. Its scalability and precision make it a versatile solution for growing businesses.

Questions About the
VR5D-E Flatbed Printer?

Our product specialists are ready to help you find the best. solution.

We are available Monday to Friday from 8 a.m. to 5 p.m. CST.

Brochure

Technical Specifications

Working Area

Max Print Width

50” x 99”

Parameters

Print Head

Print Resolution

Max Print Heads

Power Requirements

Environment

Temperature

Humidity

W x D x H

Weight

Ricoh Gen5

Up to 1800 apparent dpi as small as 7 pL

10 (5x2 rows)

2 x 220 v | 40 A | 1 phase
120 v | 20 A | 1 phase

Dust free / climate controlled

66.2 - 87.8 °F (19-31 °C)

40-70% non-condensing

17’ x 5’ x 5’ 6.9”

6,820 lbs

Series Features

Print Speeds

Express

Production

Quality

High Quality

Single Row

570 Sq.Ft./H

377 Sq.Ft./H

188 Sq.Ft./H

140 Sq.Ft./H

Dual Row

648 Sq.Ft./H

535 Sq.Ft./H

476 Sq.Ft./H

320 Sq.Ft./H

Optional equipment

Two tables to support wide and flat media up to 2.5” thick!

Documents

Brochure

Data Sheet

Why Choose Vanguard?

Vanguard Digital Printing Systems delivers cutting-edge UV-LED technology, industry-leading support, and scalable solutions to help businesses maximize efficiency and profitability.
With the VR5D-E from Vanguard Digital Printing Systems, you are only limited by your imagination.

You can print on:
