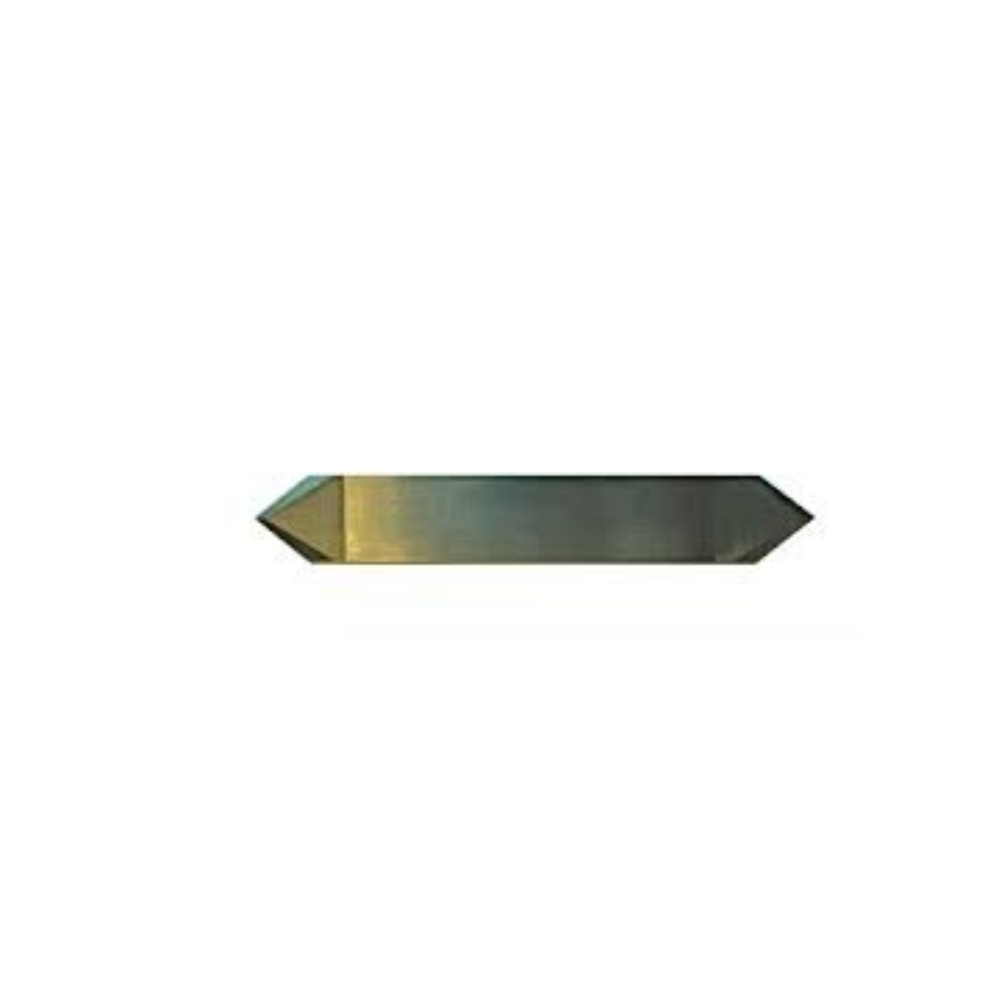

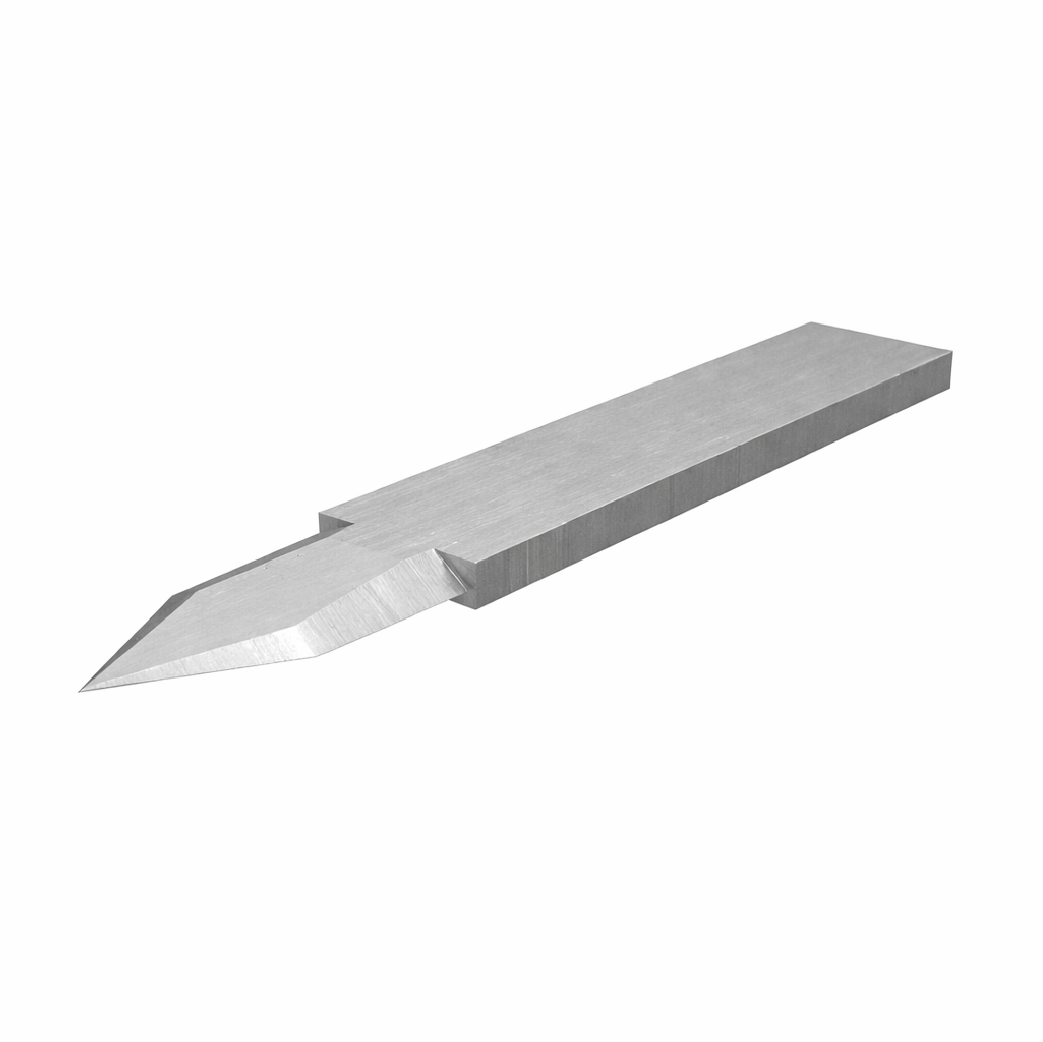

E13Z Blade for Apex Drag Knife - Special Order

The E13Z 60° Blade is a double-sided flat stock knife designed for clean, accurate cutting of less tough and fibrous materials. Engineered for static and drag knife applications in UCT tool holders, this blade delivers reliable performance across a wide range of soft board and flexible substrates.

With a 60° cutting angle, the E13Z offers excellent control for detailed contours and precise edge definition. Its 14 mm (0.551") maximum cut length allows for effective material penetration, while the 1.5 mm (0.059") blade thickness provides durability and consistent cutting stability during production runs.

The integrated start and end overcut design ensures clean corner transitions and fully separated parts, reducing manual finishing and increasing workflow efficiency.

Recommended Applications

Board – Soft

• Corrugated Plastic

• Styrene

Flexible Materials

• Carpet

• PVC Banner

• Tarpaulin

Specifications

• Blade Angle: 60°

• Max Cut Length: 14 mm (0.551")

• Blade Thickness: 1.5 mm (0.059")

• Knife Type: Flat Stock

• Blade Type: Double-Sided

• Process Type: Static / Drag Knife (UCT Tool Holders)

• Process Category: Knife Blades

Built for precision, repeatability, and clean finishing results in signmaking, packaging, and specialty cutting applications.
